GI Anchor Channel
GI Anchor Channel
GI Anchor Channel
GI Anchor Channel
GI Anchor Channel
GI Anchor Channel

GI Anchor Channel

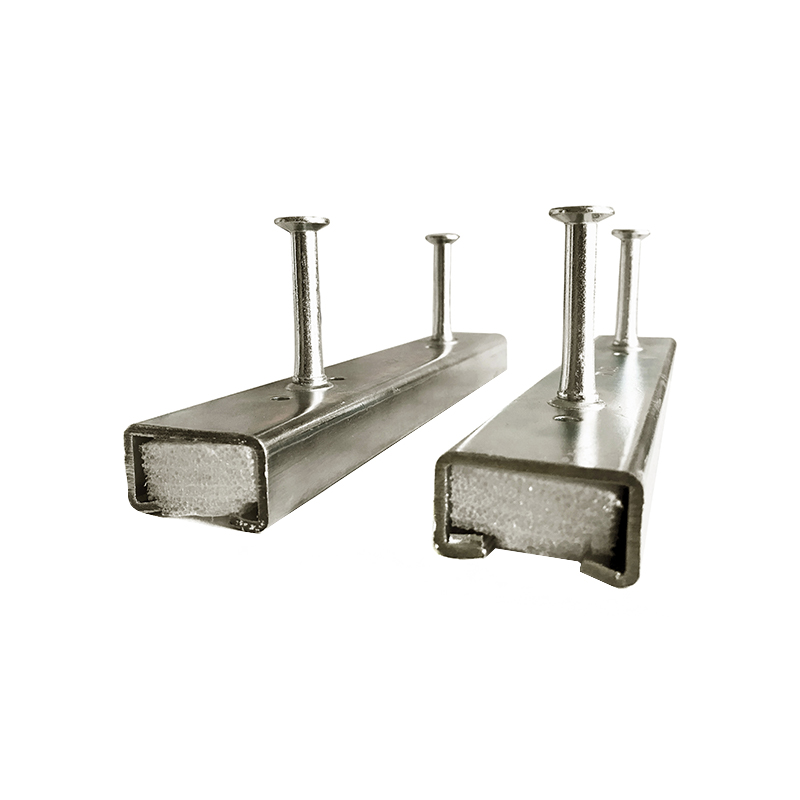

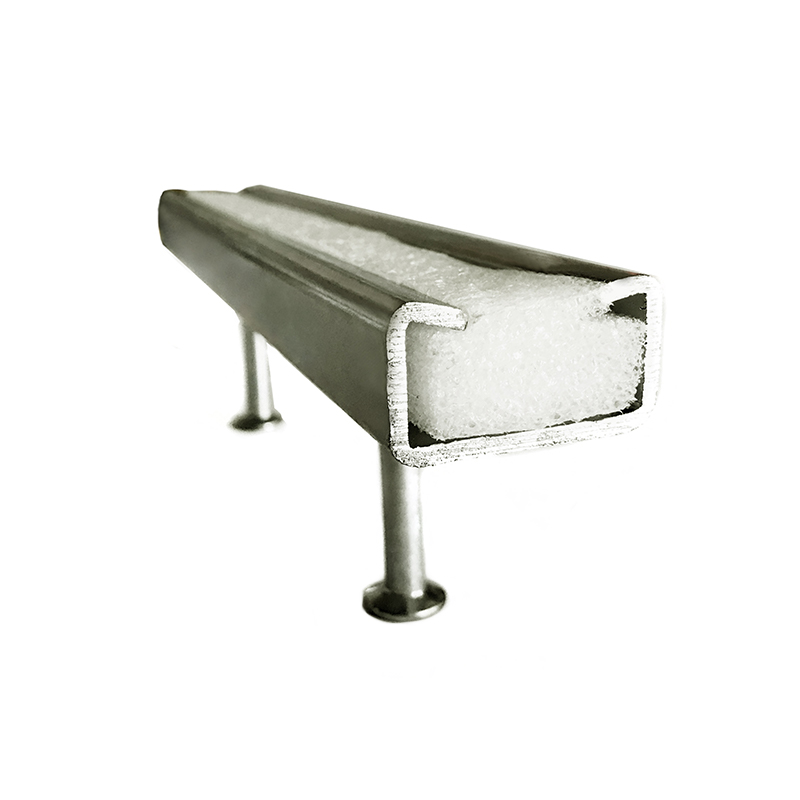

GI Anchor Channel, a galvanized iron anchor channel, is a metal component widely used in construction projects. It is made of high-strength galvanized iron sheet with anti-corrosion properties and durability. The main function of the GI Anchor Channel is to provide fixation and support for various pipes, cables, etc. By fixing it into the wall or floor of a building, pipes, cables, etc. can be effectively fixed in designated locations to prevent them from moving or falling off. GI Anchor Channel also features easy installation and a compact structure.
Get A Quote
PREV：GI Cast In ChannelNEXT：No next article
  • Parameter
  • Contact Us
  • Identification values
    Profile
    72/48
    72/49
    55/42
    52/34
    54/33
    50/30P
    49/30
    40/22P
    40/25
    38/17
    HTA-CE 28/15
    Type
    hot-rolled
    cold-rolled
    hot-rolled
    hot-rolled
    cold-rolled
    hot-rolled
    cold-rolled
    hot-rolled
    cold-rolled
    cold-rolled
    cold-rolled
    Geometry
    HALFEN Channels HTA-CE
    Note: observe the installation height hinst
    Material
    Steel
    A4
    HCR
    Bolts
    72/48
    72/48
    50/30
    50/30
    50/30
    50/30
    50/30
    40/22
    40/22
    38/17
    HS 28/15
    Threads
    M20 - M30
    M20 - M30
    M10 - M20
    M10 - M20
    M10 - M20
    M10 - M20
    M10 - M20
    M10 - M16
    M10 - M16
    M10 - M16
    M6 - M12
    SSIb [mm]
    129
    129
    109
    88
    88
    98
    81
    79
    65
    52
    42
    Profile load capacity
    NRd,s,I [kN]
    55.6
    55.6
    44.4
    		 36.1 30.6 21.7 17.2 19.4 11.1 10.0  5.0
    VRd,s,I [kN] 72.2 57.8 39.7 22.4
    MRd,s,flex
     [Nm]    		 Steel 7472 - 5606 2933 2595 2437 1455 1208 956 504 276
    NR 7630 7493 - 2996 2595 2743 1485 1358 931 516 282
    Geometry
    hinst [mm]①② (191) (193) 182 (185) 162 (164) 161 (164) 112 (161) 103 (101) 97 (154) 89 (89) 81 (82) 50 (79)
    bch [mm] 72 72 54.5 52.5 54 49 50 39.5 40 38 28.0
    hch [mm] 48.5 49 42 33.5 33 30 30 23 25 17.5 15.25
    ly
    [mm4]    		 Steel 349721 293579 187464 93262 72079 52575 41827 19859 20570 8547 4060
    NR 19859 19097
    hef [mm] 179 179 175 155 155 106 94 91 79 76 45
    Cmin [mm] 150 150 100 100 100 75 75 50 50 50 40

    Anchor Channels

    also known as a slot anchor or installation channel, is a component used in construction and structural applications to provide a secure and adjustable anchoring solution. It is commonly used to attach and support various building elements, such as facades, curtain walls, cladding panels, and suspended ceilings.

    The anchor channel consists of a metal channel or track that is embedded or attached to a supporting structure, such as concrete or steel. It typically has a U-shaped or C-shaped cross-section, allowing for easy insertion and adjustment of anchor bolts, threaded rods, or other fasteners.

    The anchor channel is installed during the construction phase, typically before the exterior finish or cladding is applied. It is securely fixed to the underlying structure using appropriate fasteners, such as concrete screws, adhesive, or welding, depending on the specific application and load requirements.

    Once the anchor channel is in place, various building elements can be attached to it using compatible connectors or fasteners. This allows for flexibility in the installation, adjustment, and replacement of these elements if needed.

    One of the main advantages of anchor channels is their adjustability. The fasteners or connectors can be easily positioned along the channel, allowing for precise alignment and leveling of the attached elements. This adjustability is particularly useful when dealing with variations in dimensions or alignment during construction.

    Anchor channels also provide a high degree of load capacity and stability. The channel's design distributes the load over a larger area, reducing stress concentrations and improving the overall strength of the connection. This makes anchor channels suitable for applications where heavy loads or dynamic forces are involved.

    It's important to note that the specific design and features of anchor channels can vary depending on the manufacturer and intended application. Consulting the manufacturer's specifications and guidelines is recommended to ensure proper installation and usage of anchor channels for your specific project requirements.

Related Products

About Us
Jiangsu Aozheng Metal Products Co., Ltd.

Jiangsu Aozheng Metal Products Co., Ltd. Is China GI Anchor Channel Suppliers and Wholesale GI Anchor Channel Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.

Certificate Of Honor
  • High-Tech Enterprises
  • Made in China Network Certification
  • Business License
  • Opening Permit
  • Jiangsu Private Science & Technology Enterprise
  • A heavy-duty combined stone pendant
  • An integrated stone back bolt
News
Message Feedback
GI Anchor Channel Industry knowledge

What special designs or anti-corrosion treatments does Aozheng's GI Anchor Channel have to ensure that it can maintain excellent performance in harsh environments for a long time?

As a comprehensive metal products company integrating production, R&D and sales, the GI Anchor Channel we produce has demonstrated excellent technical strength and innovative spirit in design and anti-corrosion treatment to ensure that the product can maintain excellent performance in various harsh environments for a long time.

1. Special design
Structural optimization: Aozheng's GI Anchor Channel adopts advanced structural design. Through precise mechanical calculation and optimized design, it ensures that the channel can remain stable when bearing heavy loads and reduce the risk of deformation and breakage. At the same time, its unique lock design makes installation more convenient and improves construction efficiency.
Material selection: The company strictly screens high-quality raw materials, such as high-quality galvanized steel plates, which not only have excellent mechanical properties, but also have good corrosion resistance and durability. The galvanized layer can effectively isolate air and moisture, further extending the service life of the product.
Customized service: The company also provides customized services to personalize the GI Anchor Channel according to the specific needs of customers and project characteristics. Whether it is size, shape or connection method, it can meet the specific requirements of customers and ensure that the product is perfectly integrated into the building structure.

2. Anti-corrosion treatment
Hot-dip galvanizing treatment: The core anti-corrosion technology of GI Anchor Channel lies in the hot-dip galvanizing treatment on its surface. This process melts the zinc layer at high temperature and attaches it to the surface of the steel plate to form a dense galvanized layer. This galvanized layer can not only effectively prevent the steel plate from direct contact with air and moisture, but also form a protective film on the surface of the steel plate. Even if the galvanized layer is slightly damaged, it can prevent further corrosion of the steel plate through the sacrificial anode protection of zinc.
Double anti-corrosion coating: In addition to hot-dip galvanizing, Aozheng also uses double anti-corrosion coating technology on some products. That is, on the basis of the galvanized layer, a layer of anti-corrosion paint is applied to form a double protective barrier. This treatment method can further improve the anti-corrosion performance of the product, enabling it to be used for a long time in a more severe environment.
Regular maintenance and inspection: Although GI Anchor Channel has excellent anti-corrosion performance, we still recommend that customers perform regular maintenance and inspection during use. By checking the integrity of the galvanized layer and the condition of the coating, potential problems can be discovered and dealt with in a timely manner to ensure the long-term stable operation of the product.

The company's GI Anchor Channel ensures that the product can maintain excellent performance in various harsh environments for a long time through structural optimization, material selection, customized services and advanced anti-corrosion treatment technology. These special designs and anti-corrosion treatments not only improve the quality and reliability of the product, but also bring customers safer, more efficient and economical solutions.
