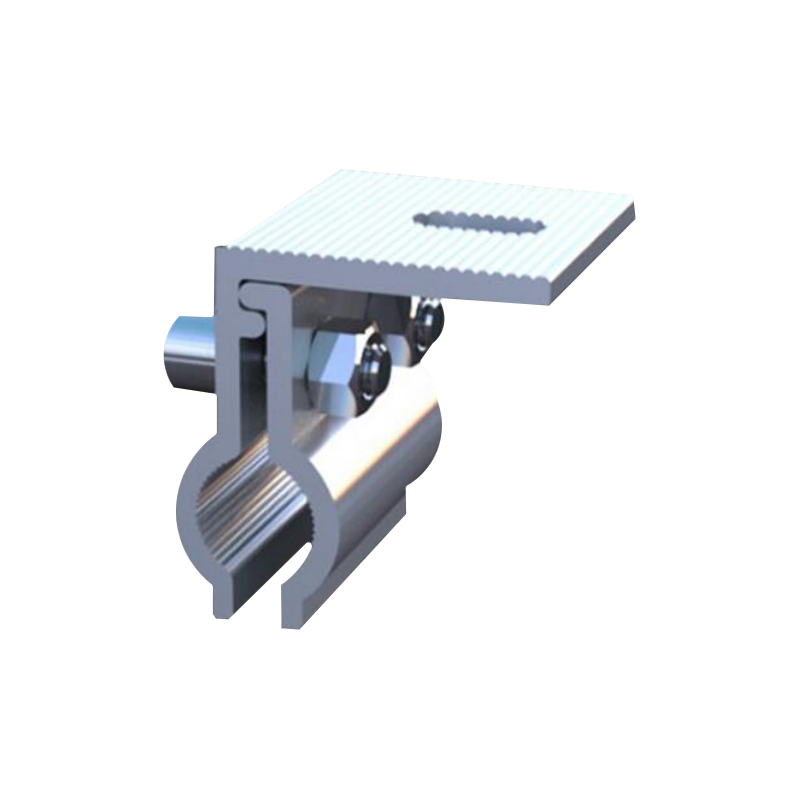

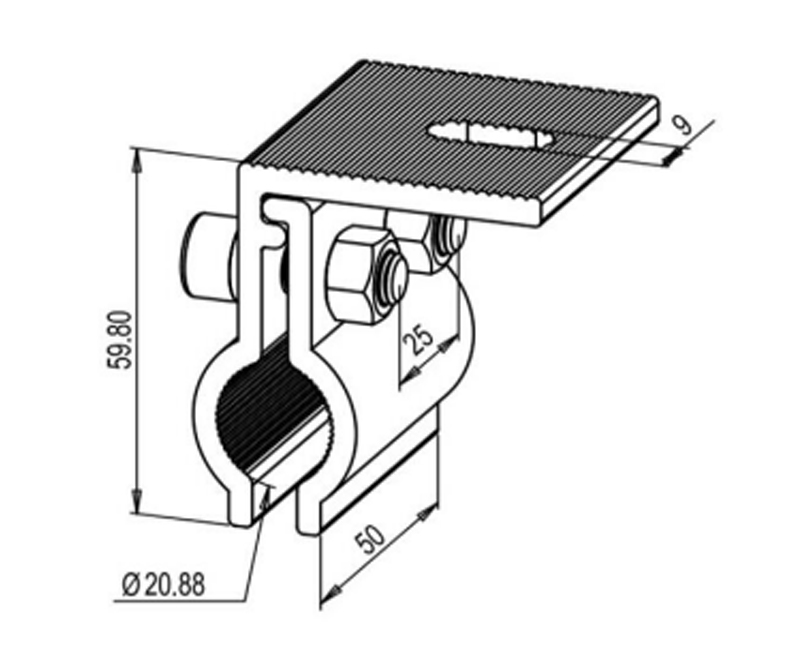

Distributed Solar Photovoltaic Bracket Circular Clamp, Ceramic Glazed Tile Roof Bracket System

What are the main types of solar clamps for metal roofs?

The main types of solar clamps for metal roofs include the following:
Rail Clamps
Features: These clamps are designed to work with the rail system of a metal roof. They secure solar panels to pre-installed rails.
Advantages: Easy installation, flexible adjustment, and the ability to accommodate different panel layouts and angles.
Applicable scenarios: Commonly used in large solar systems or installation environments that require multiple rails.

Bolt Clamps
Features: These clamps are bolted directly to the bolt holes of the metal roof. Bolt clamps usually have a strong fixing force.
Advantages: Suitable for withstanding large wind forces and other external pressures, and are stable to install.
Applicable scenarios: Suitable for environments that require high-strength fixing, especially installations under extreme climate conditions.

T-Clamps
Features: T-Clamps are usually fixed to the rails or brackets of the roof using T-bolts. They can provide strong fixing.
Advantages: Relatively simple to install and adjust, and provide good stability.
Applicable scenarios: Suitable for scenarios that require quick installation and adjustment.

Corner Clamps
Features: This clamp is used to provide additional fixing support at the corners of solar panels.
Advantages: Enhance the fixing force of the corners to prevent the displacement of the panels due to factors such as wind.
Applicable scenarios: Suitable for solar panel installations that require additional support.

Mid Clamps
Features: This clamp is used in the middle position between panels to fix solar panels and maintain spacing.
Advantages: Provides uniform pressure distribution and simplifies the installation process of panels.
Applicable scenarios: Suitable for solar systems that require uniform pressure distribution.

How to choose the right metal roof solar clamp?

There are several factors involved in choosing the right metal roof solar clamp. Here are some key considerations to help you make the right choice:

Roof type and structure
Type of metal roof: Different types of metal roofs (such as standing seam roofs, tile roofs, etc.) may require different clamp designs. Confirm whether the clamp is suitable for your roof type.
Roof pitch and shape: Choose a clamp that can adapt to the roof pitch and shape, and ensure the compatibility of the clamp with the roof structure.

Type of solar panel
Panel size and thickness: Make sure the clamp can support the size and thickness of the solar panel you are using. The design of the clamp should match the specifications of the panel.
How the panel is installed: For example, whether a chute system is used or directly fixed.

Load-bearing capacity
Wind and snow loads: Consider the wind and snow loads that the clamp needs to withstand. Choose a clamp with sufficient load-bearing capacity to ensure the stability of the system under severe weather conditions.

Clamp material
Corrosion resistance: Choose corrosion-resistant materials (such as aluminum alloy or stainless steel) to ensure the durability of the clamp in long-term use.
Material quality: Make sure the material quality of the fixture meets the standards to prevent safety issues caused by material deterioration.

Installation requirements
Ease of installation: Choosing a fixture that is easy to install and adjust can save installation time and cost.
Professional installation: If the fixture is complex to install, you may need to seek professional installation services to ensure the correct installation of the fixture and the stability of the system.

Compatibility and standards
Building regulations: Make sure the fixture meets local building regulations and standards to avoid problems caused by non-compliance.
System compatibility: Confirm the compatibility of the fixture with other system components (such as brackets, tracks).
