Facade System with pin
FACING MATERIAL:
textured glass fiber reinforced concrete slabs, artificial stone slabs
FIXING:
concealed fixing with TRAG profile and chemical anchors (embedded studs)
MAX FACING SIZES:
4500x3500mm (10-30mm thick) -textured glass fiber reinforced concrete slabs
1200x600mm(30-80mm thick)-fiber reinforced concrete slabs

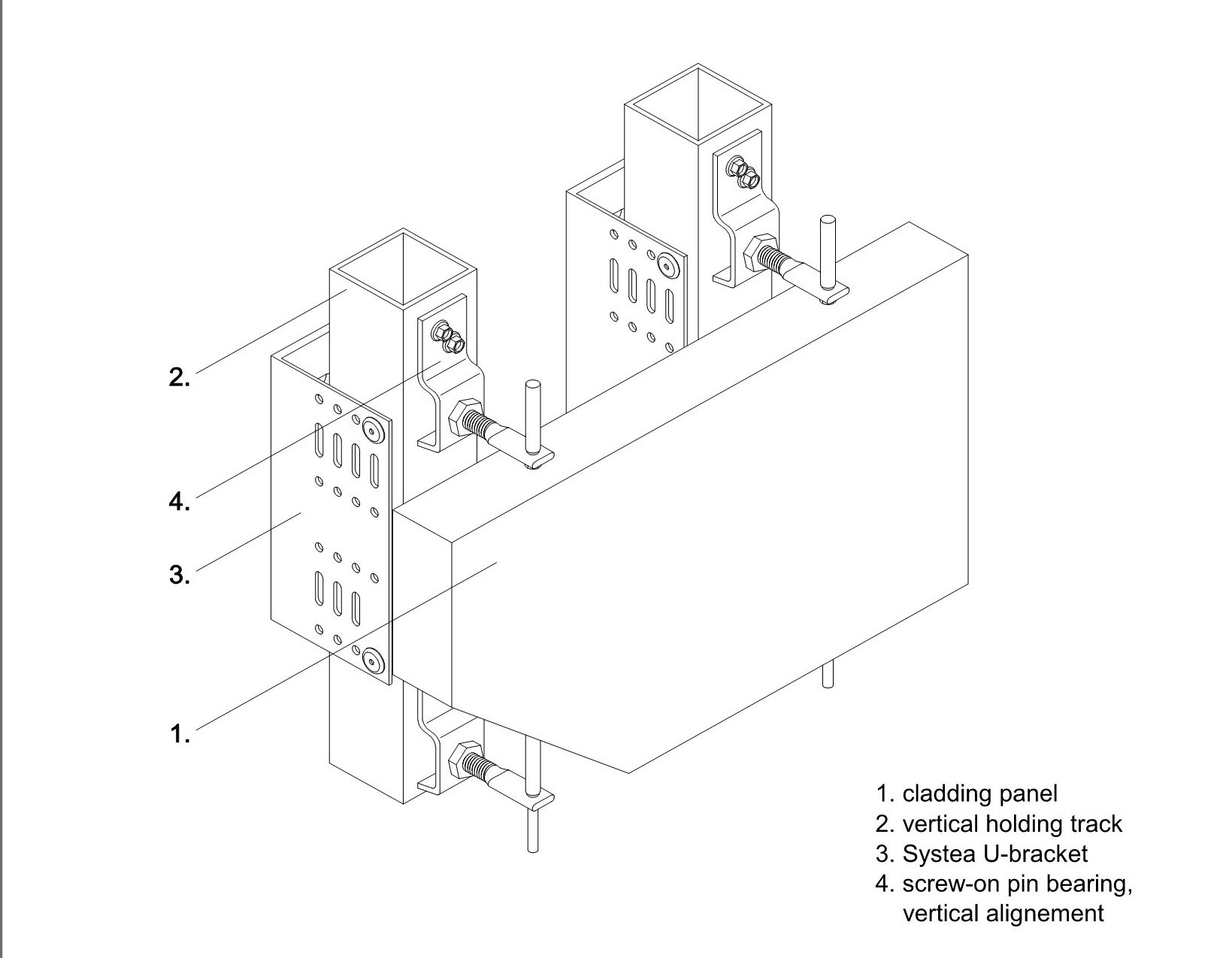

Substructures for natural stone panels with a pin bearing Aluminum-stainless steel substructures for the fastening of natural stone in the panel joints with a pin bearing. In the systems, the traditional pin support is installed on a vertical profile. Through the combination of the pin support with a sub-structure, you reduce the drilling effort in the building structure, and large loads in the passive house standard with high insulation package thicknesses can be implemented. Depending on the wall brackets, fire protection requirements can be implemented and the passive house standard is possible.
Jiangsu Aozheng Metal Products Co., Ltd. Is China Stone Fixing Facade Cladding System For Pin Suppliers and Wholesale Stone Fixing Facade Cladding System For Pin Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.
We will wholeheartedly provide you with high quality products, reasonable price, on-time delivery and attentive service.
