Identification values
|
||||||||||||
Profile
|
72/48
|
72/49
|
55/42
|
52/34
|
54/33
|
50/30P
|
49/30
|
40/22P
|
40/25
|
38/17
|
HTA-CE 28/15
|
|
Type
|
hot-rolled
|
cold-rolled
|
hot-rolled
|
hot-rolled
|
cold-rolled
|
hot-rolled
|
cold-rolled
|
hot-rolled
|
cold-rolled
|
cold-rolled
|
cold-rolled
|
|
Geometry
HALFEN Channels HTA-CE
|
||||||||||||
Note: observe the installation height hinst
|
||||||||||||
Material
|
Steel
|
|||||||||||
A4
|
||||||||||||
HCR
|
||||||||||||
Bolts
|
72/48
|
72/48
|
50/30
|
50/30
|
50/30
|
50/30
|
50/30
|
40/22
|
40/22
|
38/17
|
HS 28/15
|
|
Threads
|
M20 - M30
|
M20 - M30
|
M10 - M20
|
M10 - M20
|
M10 - M20
|
M10 - M20
|
M10 - M20
|
M10 - M16
|
M10 - M16
|
M10 - M16
|
M6 - M12
|
|
SSIb [mm]
|
129
|
129
|
109
|
88
|
88
|
98
|
81
|
79
|
65
|
52
|
42
|
|
Profile load capacity
|
||||||||||||
NRd,s,I [kN]
|
55.6
|
55.6
|
44.4
|
36.1 | 30.6 | 21.7 | 17.2 | 19.4 | 11.1 | 10.0 | 5.0 | |
VRd,s,I [kN] | 72.2 | 57.8 | 39.7 | 22.4 | ||||||||
MRd,s,flex [Nm] |
Steel | 7472 | - | 5606 | 2933 | 2595 | 2437 | 1455 | 1208 | 956 | 504 | 276 |
NR | 7630 | 7493 | - | 2996 | 2595 | 2743 | 1485 | 1358 | 931 | 516 | 282 | |
Geometry | ||||||||||||
hinst [mm]①② | (191) | (193) | 182 (185) | 162 (164) | 161 (164) | 112 (161) | 103 (101) | 97 (154) | 89 (89) | 81 (82) | 50 (79) | |
bch [mm] | 72 | 72 | 54.5 | 52.5 | 54 | 49 | 50 | 39.5 | 40 | 38 | 28.0 | |
hch [mm] | 48.5 | 49 | 42 | 33.5 | 33 | 30 | 30 | 23 | 25 | 17.5 | 15.25 | |
ly [mm4] |
Steel | 349721 | 293579 | 187464 | 93262 | 72079 | 52575 | 41827 | 19859 | 20570 | 8547 | 4060 |
NR | 19859 | 19097 | ||||||||||
hef [mm] | 179 | 179 | 175 | 155 | 155 | 106 | 94 | 91 | 79 | 76 | 45 | |
Cmin [mm] | 150 | 150 | 100 | 100 | 100 | 75 | 75 | 50 | 50 | 50 | 40 |

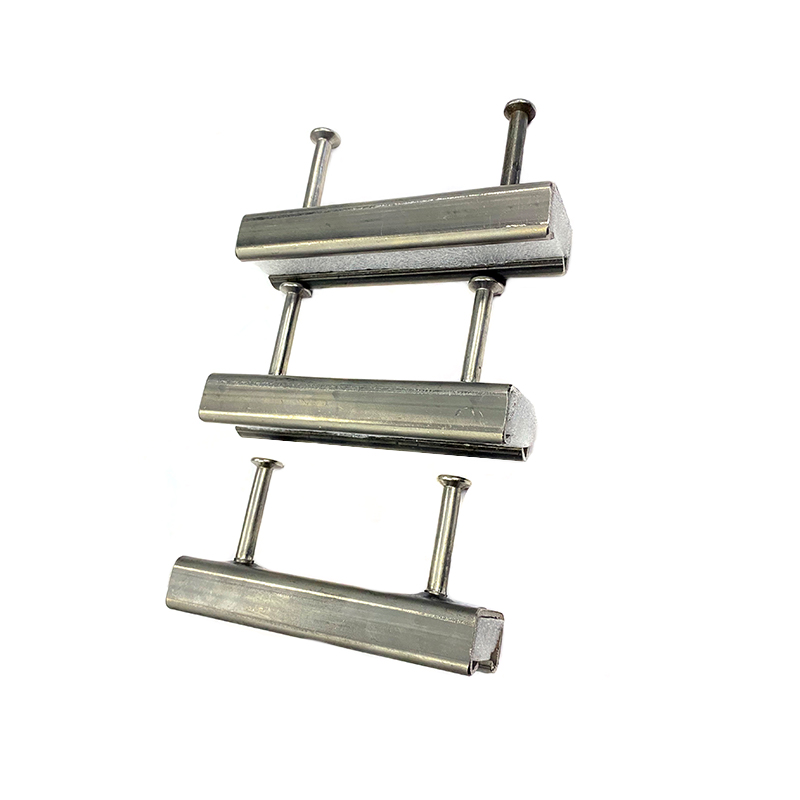

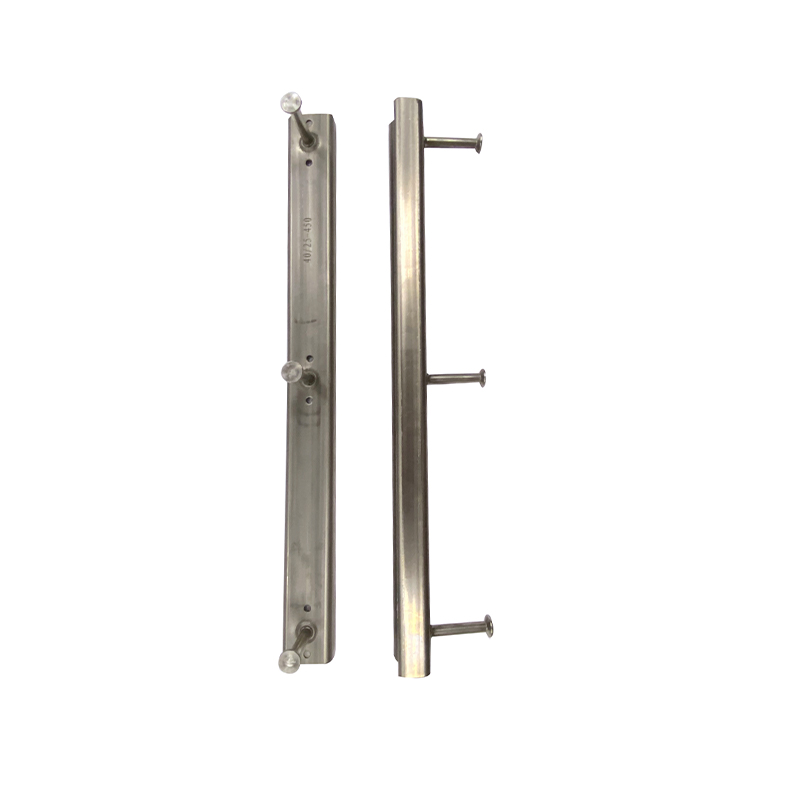

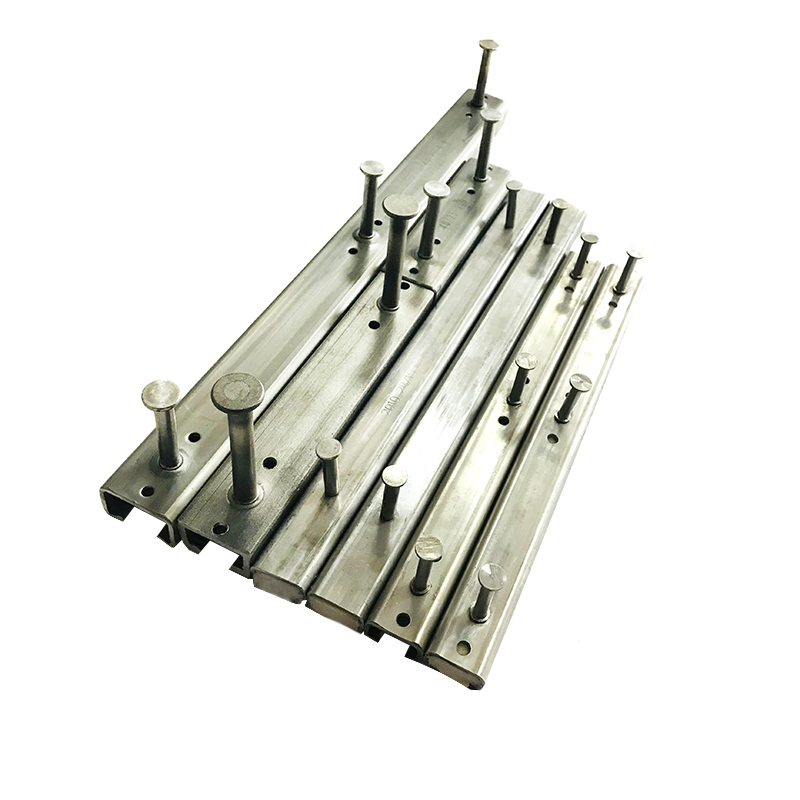

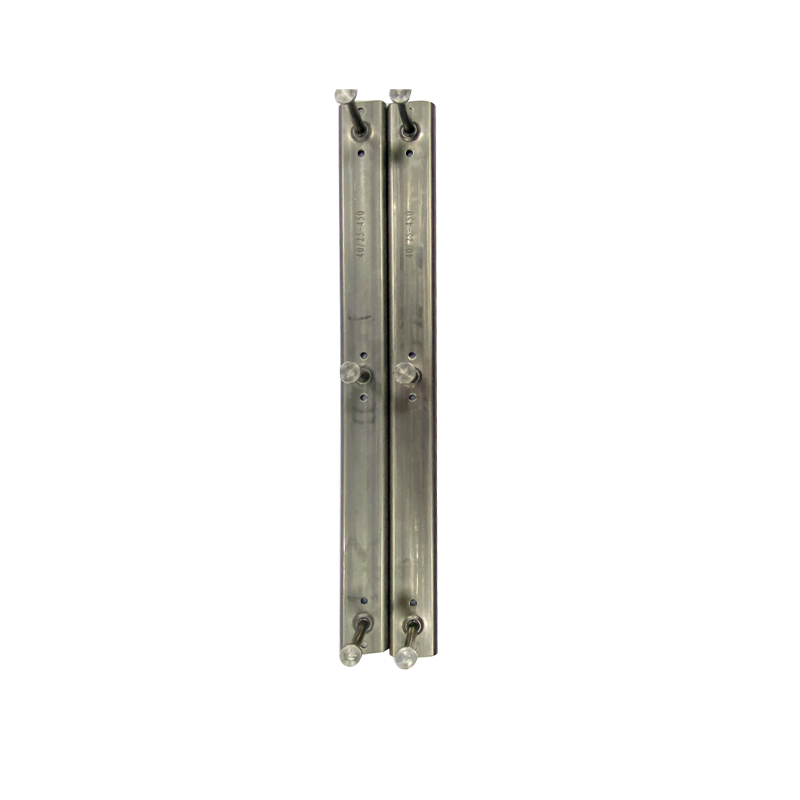

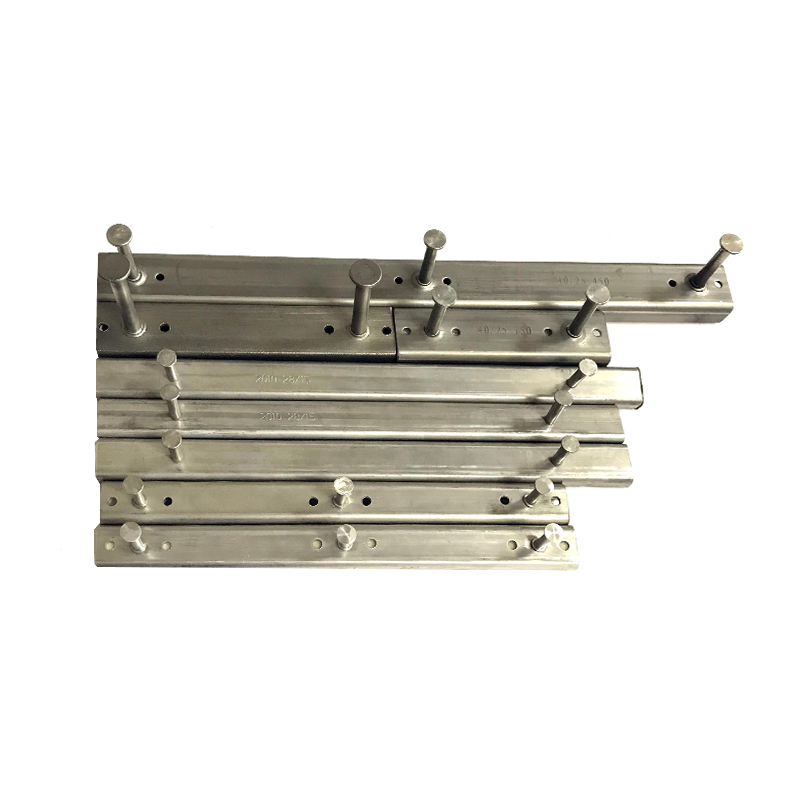

Anchor Channels are rolled channels with swaged studs that are used for connections made to concrete structures. This system allows easy and safe fixations to structures such as concrete slabs beams and columns.

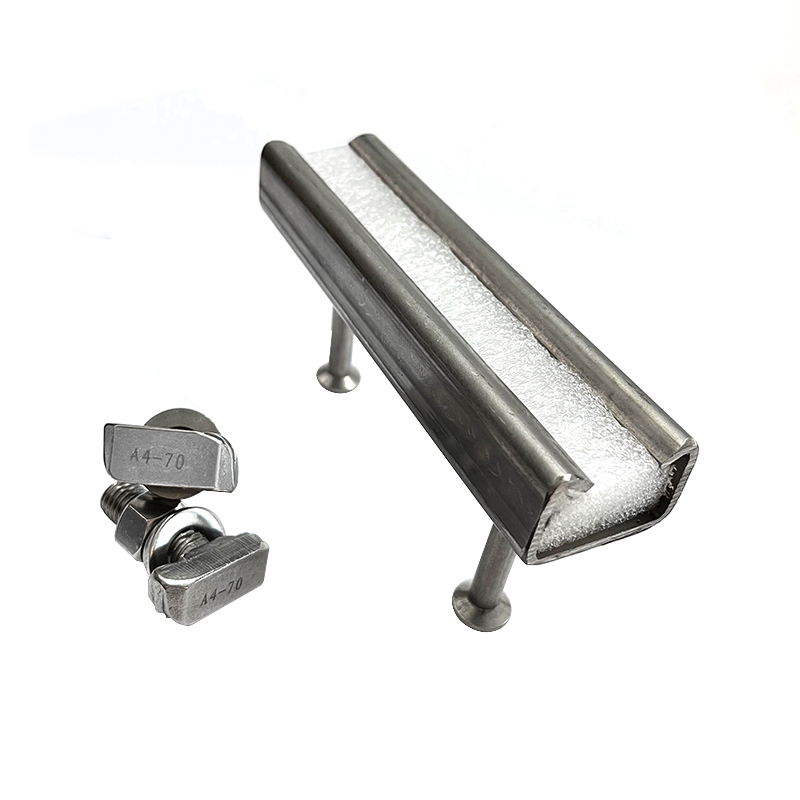

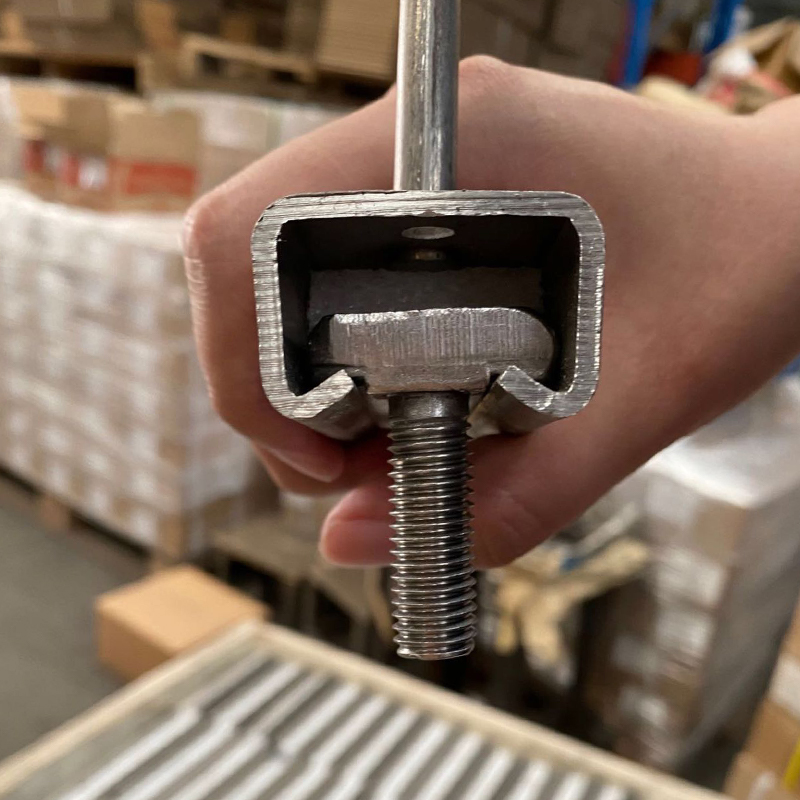

T-head bolts and lock nuts are used to allow secure and easy connections to anchor channels. The use of this system is applicable in a wide range of construction works.
Features of HMPR-CE anchor channels are as follows:
Anchor channels are designed in accordance with the design rules of DIN EN 1992-4:2019
Anchor channels allow users to work with low-edge distances.
Load resistances can be improved by using a higher concrete strength class on loading.
Shear and tensile resistance in concrete can be improved with additional reinforcement.
Anchor channels are manufactured by Jiangsu Aozheng with engineering and product development provided by its company,。
Anchor channels can be used safely and efficiently with the following features:
Quality production with strict control according to European requirements
Management and Service quality certified by lSO 9001:2018
Euro code compatible design and product dimensioning using product election software which is available upon request
Customized design in providing solutions to meet special product requirements which is provided by the company's design & engineering department.
Jiangsu Aozheng Metal Products Co., Ltd. Is China Stainless Steel Cast In Channel Suppliers and Wholesale Stainless Steel Cast In Channel Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.
Jiangsu Aozheng Metal Products Co., Ltd. plays a significant role in the manufacturing of various materials, including stainless steel, aluminum alloys, carbon steel, and architectural hardware. Their...
READ MOREThe mounting brackets for solar panels are a very important part of the solar power generation system. They are mainly used to fix the solar panels and ensure that the panels can be stably installed o...
READ MOREIn the context of electrical or cable installation, a cast-in channel installation typically refers to a method of embedding metal channels (usually made of steel or aluminum) into concrete or masonry...
READ MOREIn response to the unique climate and environmental conditions in the Middle East, Jiangsu Aozheng Metal Products Co., Ltd. has taken a series of carefully planned adaptability measures in the design, production and subsequent services of its stainless steel channel products to ensure the high performance and long-term stability of the products in this region.
