Galvanised C Channel
Galvanised C Channel
Galvanised C Channel
Galvanised C Channel
Galvanised C Channel
Galvanised C Channel
Galvanised C Channel
Galvanised C Channel

Galvanised C Channel

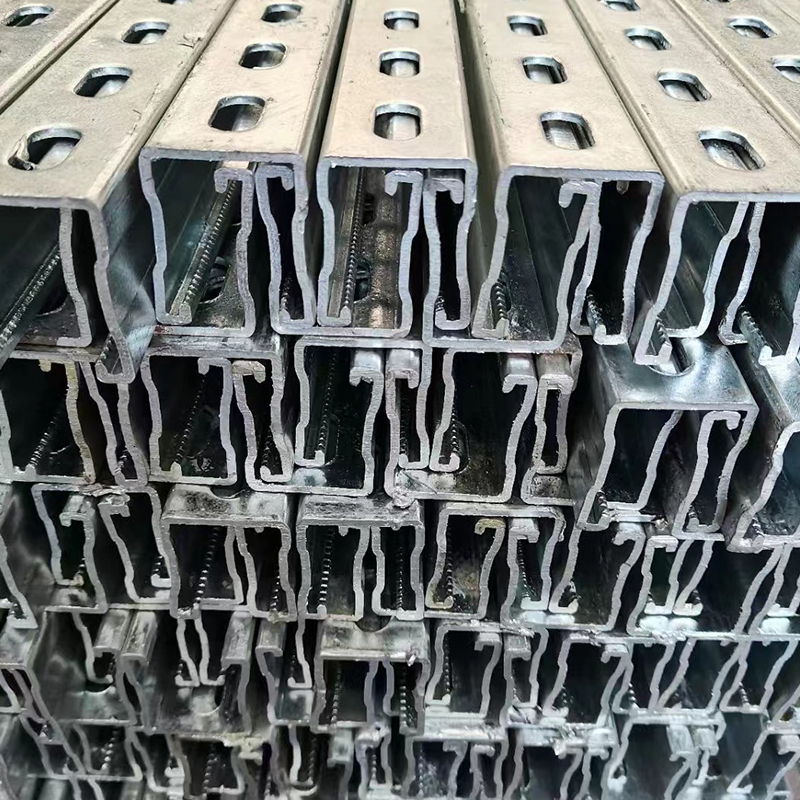

HDG galvanized C channel, with its unique C-shaped cross-section design, has good load-bearing capacity and stability, and can effectively support the building structural system. HDG galvanized C channel is hot-dip galvanized, which has corrosion resistance and can resist the erosion of moisture and oxidizing substances in the environment, thus extending its service life. In addition, it also has good plasticity and processing properties and can be cut, bent, and welded according to actual needs to facilitate construction. In the field of construction, HDG galvanized C channel is often used in the construction of steel structure factories, warehouses, bridges, highways, and other projects to provide solid support and stable structures for buildings.
Get A Quote
PREV：Stainless Steel C ChannelNEXT：No next article

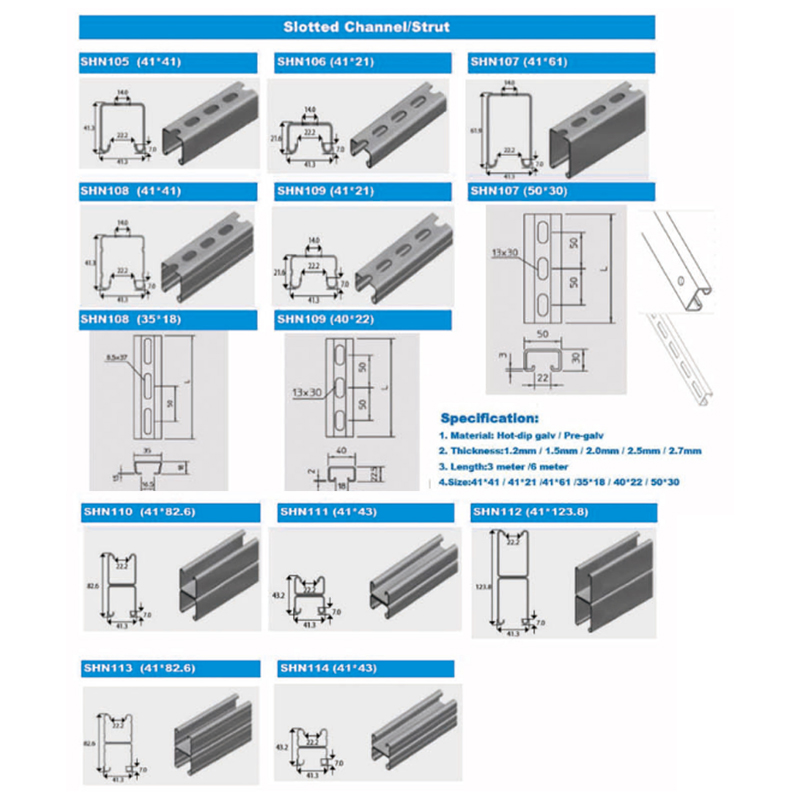

  • Parameter
  • Contact Us

  • C Profile

    41x21 Strut channel

    Finish

    Hot dip galvanized

    Pre-galvanized

    Zinc plated/Electrical galvanized

    Stainless Steel 304

    Stainless Steel 316

    Power coating

    BUP1000

    Art No

    Size

    Descr

    Thickness

    AG25

    41X41

    PLAIN

    2.50

    AG20

    41X41

    PLAIN

    2.00

    AG15

    41X41

    PLAIN

    1.50

    AB25

    41X41

    SLOTTED

    2.50

    AB20

    41X41

    SLOTTED

    2.00

    AB15

    41X41

    SLOTTED

    1.50

    DG25

    41X21

    PLAIN

    2.50

    DG20

    41X21

    PLAIN

    2.00

    DG15

    41X21

    PLAIN

    1.50

    DB25

    41X21

    SLOTTED

    2.50

    DB20

    41X21

    SLOTTED

    2.00

    DB15

    41X21

    SLOTTED

    1.50

    EG25

    62X41

    PLAIN

    2.50

    EB25

    62X41

    SLOTTED

    2.50

    FG25

    82X41

    BACK TO BACK

    2.50

    GG25

    41X41

    CONCRETE INSERT

    2.50






    Product Name

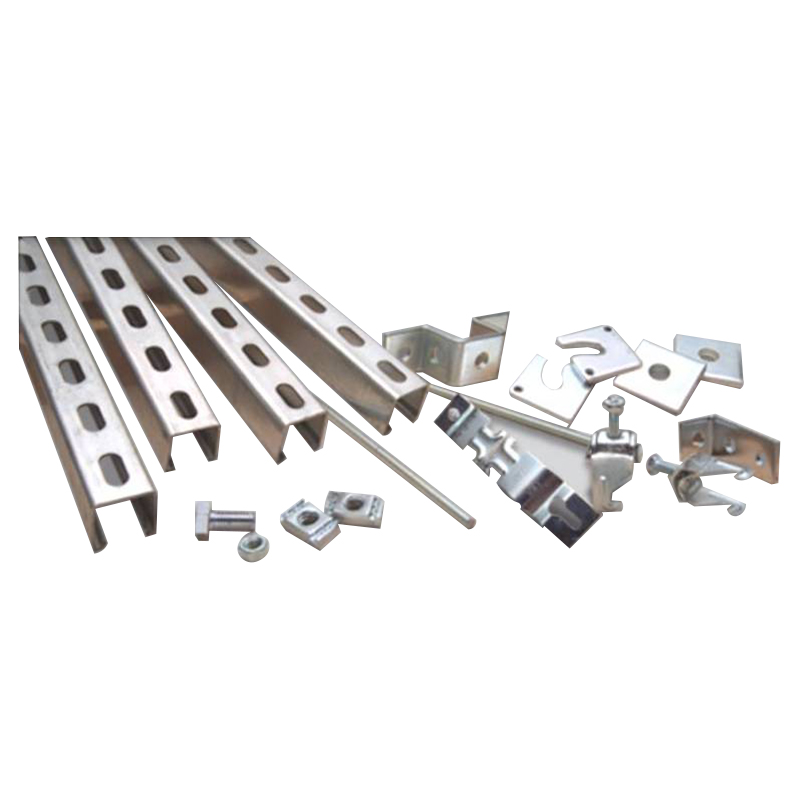

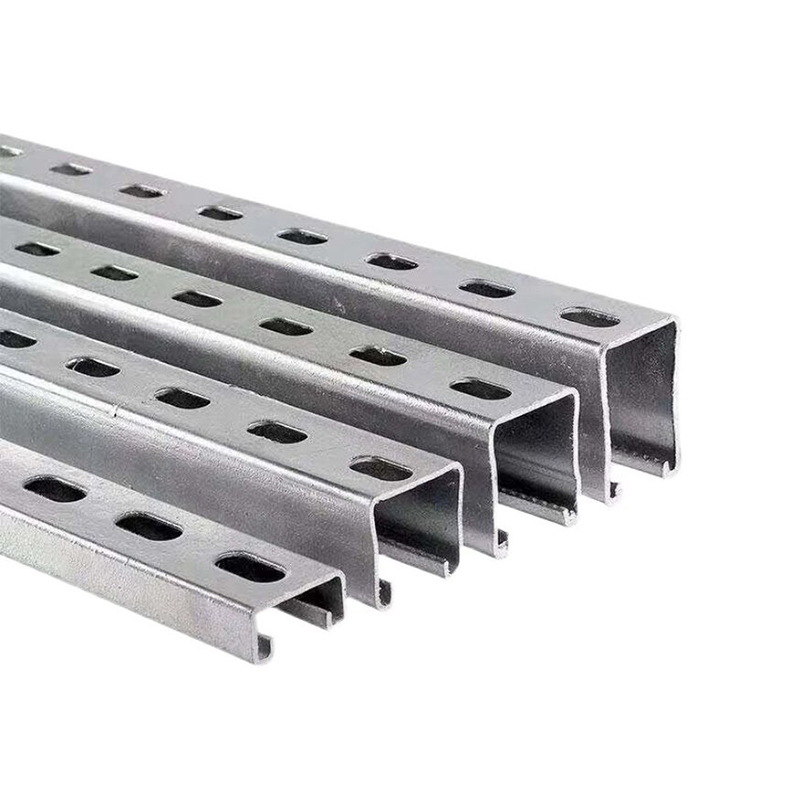

    Hot Dip Galvanized Steel Slotted Strut Channel ( C Channel, Unistrut, Uni Strut Channel)

    Material

    Q195/Q235/SS304/SS316/Aluminum

    Thickness

    1.5mm/1.9mm/2.0mm/2.5mm/2.7mm

    12GA/14GA/16GA/0.079''/0.098''

    Cross Section

    41*21,/41*41 /41*62/41*82mm with slotted or plain

    1-5/8'' x 1-5/8''     1-5/8'' x 13/16''

    Length

    3m/6m/customized

    10ft/19ft/customized

    Finished

    1. Pre-galvanized steel

    2. HDG(Hot dip galvanized)

    3. Stainless steel SS304

    4. Stainless steel SS316

    5. Aluminium

    6. Powder Coated


    Galvanized Channel

    The zinc coating on galvanized channels provides high-quality corrosion resistance. It acts as a protective barrier, preventing the underlying steel from coming into direct contact with moisture, oxygen, and other corrosive elements. This makes galvanized channels highly resistant to rust and extends their lifespan, especially in outdoor or high-humidity environments.

    Low Maintenance: Galvanized channels require minimal maintenance over their lifespan. The zinc coating provides a self-healing property, where if the coating is scratched or damaged, the surrounding zinc sacrificially protects the exposed steel, preventing corrosion. This reduces the need for frequent repairs or repainting, resulting in cost savings and convenience.

    Cost-Effectiveness: Galvanized channels offer cost advantages over alternative materials or coating methods. The initial investment in galvanized channels may be slightly higher compared to non-galvanized options, but their long lifespan and low maintenance requirements result in cost savings over time. Additionally, the protection provided by galvanization can help prevent costly repairs or replacements due to corrosion.

Related Products

About Us
Jiangsu Aozheng Metal Products Co., Ltd.

Jiangsu Aozheng Metal Products Co., Ltd. Is China Galvanised C Channel Suppliers and Wholesale Galvanised C Channel Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.

Certificate Of Honor
  • High-Tech Enterprises
  • Made in China Network Certification
  • Business License
  • Opening Permit
  • Jiangsu Private Science & Technology Enterprise
  • A heavy-duty combined stone pendant
  • An integrated stone back bolt
News
Message Feedback
C Strut Channel Industry knowledge

What is the difference between hot-dip galvanizing and cold-dip galvanizing C-shaped channel steel?

Hot-dip galvanizing and cold-dip galvanizing are two common galvanizing processes, which have some differences in manufacturing process, coating thickness, corrosion resistance and application scenarios. Here are the detailed differences between the two:

Hot-dip galvanized C-shaped channel steel
Process flow:
The hot-dip galvanizing process is to galvanize the steel surface by immersing it in molten zinc liquid. This process allows the zinc layer to be tightly bonded to the steel substrate through metallurgical bonding.

Coating thickness:
The zinc layer thickness of hot-dip galvanizing is usually larger, generally between 50-150 microns, depending on the thickness of the steel and the galvanizing time.

Corrosion resistance:
Due to the thicker zinc layer, hot-dip galvanized C-shaped channel steel has better corrosion resistance and can be used for many years in harsh outdoor environments.

Application scenarios:
Hot-dip galvanized channel steel is often used in outdoor buildings, bridges, road guardrails, communication towers and other occasions that require long-term corrosion resistance.

Appearance:
The appearance of hot-dip galvanizing is usually rough, and the surface may have zinc nodules and uneven gloss.
Cold-dip galvanized C-shaped channel steel

Process flow:
Cold-dip galvanizing (also known as electrogalvanizing) is to attach zinc to the surface of steel by electrochemical methods in an electrolytic cell. The zinc layer is covered on the surface of the steel by physical adsorption.

Coating thickness:
The zinc layer of cold-dip galvanizing is thinner, generally between 5-30 microns, with uniform and controllable thickness.

Corrosion resistance:
Due to the thinner zinc layer, the corrosion resistance of cold-dip galvanizing is not as good as that of hot-dip galvanizing, and it is suitable for indoor or dry environments.

Application scenarios:
Cold-dip galvanized channel steel is mostly used in interior decoration, home furnishings, light industrial equipment and other occasions where corrosion resistance is not high.

Appearance:
The surface of cold-dip galvanizing is relatively smooth, with uniform gloss and better aesthetics.

What precautions should be taken during the construction of C-shaped channel steel?

During the construction process, the following aspects should be paid attention to when using C-shaped channel steel to ensure safety, stability and durability:

1. Design and planning
Load calculation: Before construction, ensure that detailed load calculations have been carried out according to project requirements to determine the appropriate channel steel specifications and spacing.
Drawing review: Carefully check the construction drawings to ensure that the layout, length, specifications, etc. of the channel steel meet the design requirements.
2. Material inspection
Quality inspection: Before construction, check the quality of the C-shaped channel steel and its accessories to ensure that there is no obvious deformation, corrosion or damage.
Specification verification: Confirm that the size, thickness and galvanized layer of the channel steel meet the design requirements.
3. Installation preparation
Foundation treatment: Ensure the flatness and strength of the channel steel installation foundation or supporting structure, and reinforce it if necessary.
Accessory preparation: Prepare the required connectors, bolts, nuts and other accessories to ensure sufficient quantity and correct specifications.
4. Installation process
Alignment and level: During the installation process, ensure the alignment and levelness of the C-shaped channel steel, and use a level and plumb bob for correction.
Firm connection: Use appropriate fasteners to fix the channel steel connection to ensure a firm connection and prevent loosening.
Spacing control: According to the design requirements, control the spacing of the channel steel to ensure the bearing capacity and stability.
5. Safety measures
Personal protection: Construction workers should wear protective equipment such as safety helmets and gloves to avoid personal injury during construction.
Tool safety: Use appropriate tools for cutting and installation to ensure the integrity of the tools and safe operation.
Site management: Keep the construction site clean and tidy to avoid the accumulation of debris that affects construction and safety.
6. Quality inspection
Inspection and adjustment: After installation, conduct a comprehensive inspection to ensure that all connectors are tightened and the channel steel is not deformed or loose.
Load test: If necessary, perform a load test to verify the stability and bearing capacity of the structure.
7. Maintenance and care
Regular inspection: During use, regularly check the status of the C-type channel steel and repair it in time if damage or corrosion is found.
Anti-corrosion measures: For channel steels that are exposed to humid environments for a long time, additional anti-corrosion treatment can be performed.
