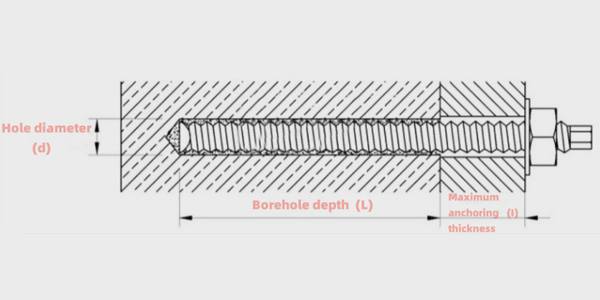

Size | Hose type | Screw length | d(mm) | L(mm) | l(mm) | Ultimate tension (kgf) | Ultimate shear (kgf) |
M8*110 | RIM-8 | 110 | 10 | 80 | 13 | 2417 | 1571 |
M10*130 | RI[-10 | 130 | 12 | 90 | 20 | 3600 | 2489 |
M12*160 | RI[-12 | 160 | 14 | 110 | 25 | 5905 | 3611 |
M14*180 | RIM-14 | 180 | 16 | 115 | 30 | 6140 | 4896 |
M16*190 | RI[-16 | 190 | 18 | 125 | 35 | 7232 | 6722 |
M18*200 | RIM-18 | 200 | 22 | 150 | 40 | 9700 | 7109 |
M20*260 | RIM-20 | 260 | 25 | 170 | 65 | 13372 | 10496 |
M22*280 | RIM[-22 | 280 | 25 | 190 | 65 | 14800 | 10516 |
M24*300 | RIM[-24 | 300 | 28 | 210 | 65 | 18952 | 10771 |
M30*380 | RIM-30 | 380 | 35 | 280 | 65 | 25051 | 17850 |

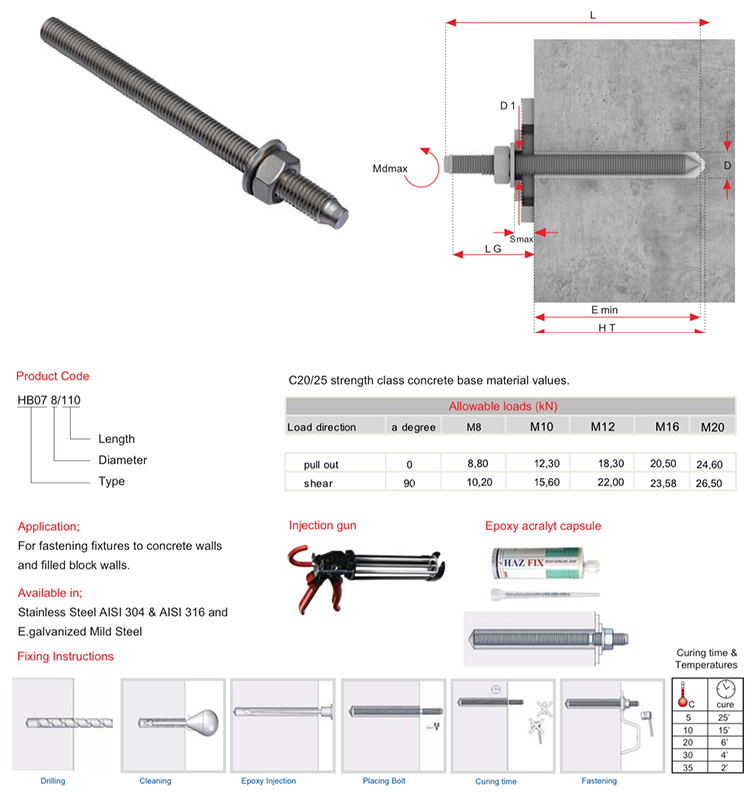

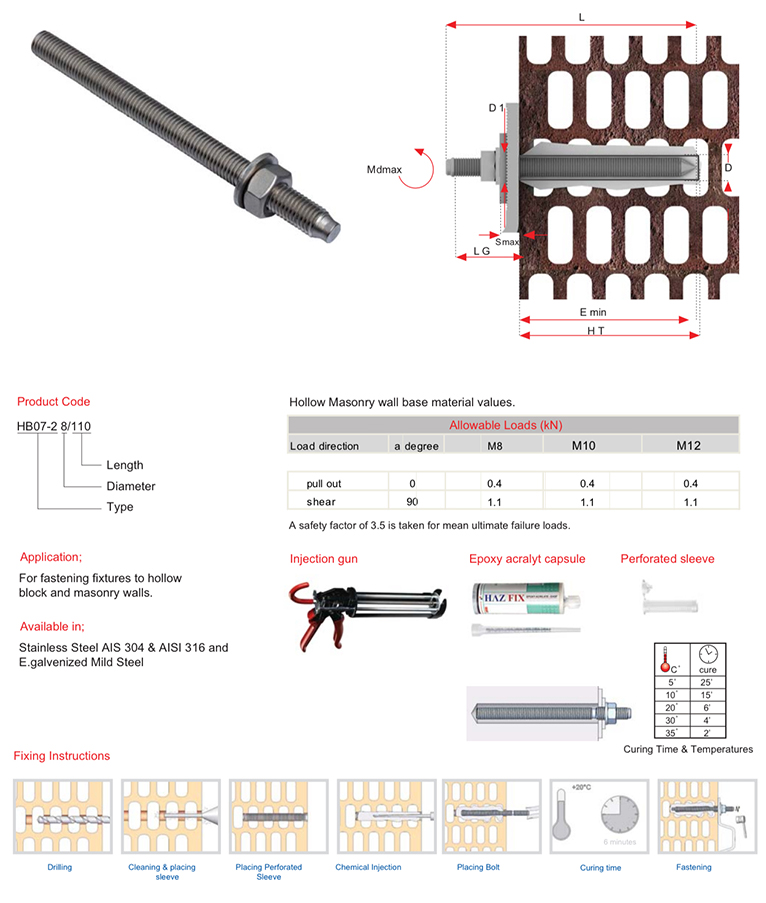

Model | Screw diameter (mm) | Screw total length L (mm) | Drilling diameter DB (mm) | Burial depth T(mm) | Fixture thickness Smax (mm) | Minimum substrate thickness D (mm) | Maximum tightening torque Mp (Nm) |
M8 | M8 | 110 | 10 | 80 | 14 | 130 | 10 |
M10 | M10 | 130 | 12 | 90 | 20 | 140 | 20 |
M12 | M12 | 160 | 14 | 110 | 25 | 160 | 40 |
M16 | M16 | 190 | 18 | 125 | 35 | 175 | 80 |
M20 | M20 | 260 | 25 | 170 | 65 | 220 | 150 |
M24 | M24 | 300 | 28 | 210 | 65 | 260 | 200 |
M30 | M30 | 380 | 35 | 280 | 70 | 330 | 400 |
Anchor Bolts
There are many types of expansion bolts available for use to fix anchors onto different types of walls. Expansion bolts are all tested to meet the pull-out force and shear force performance criteria.

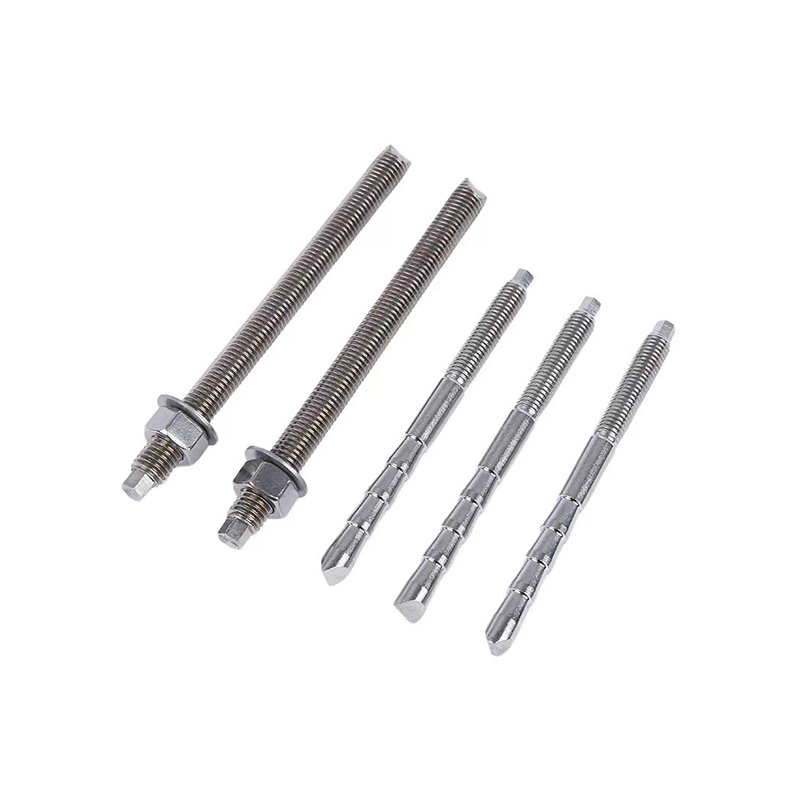

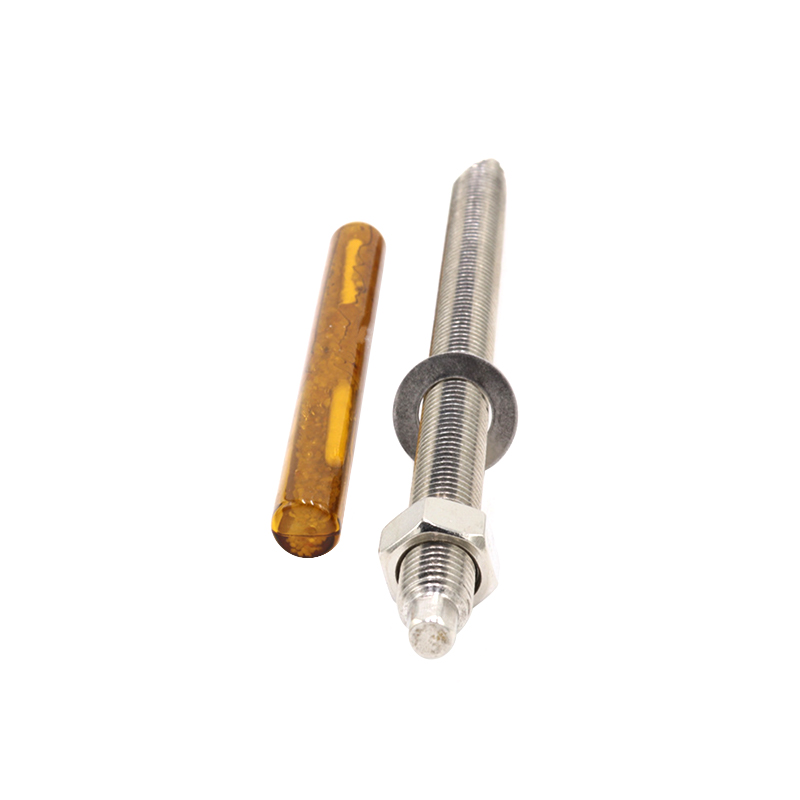

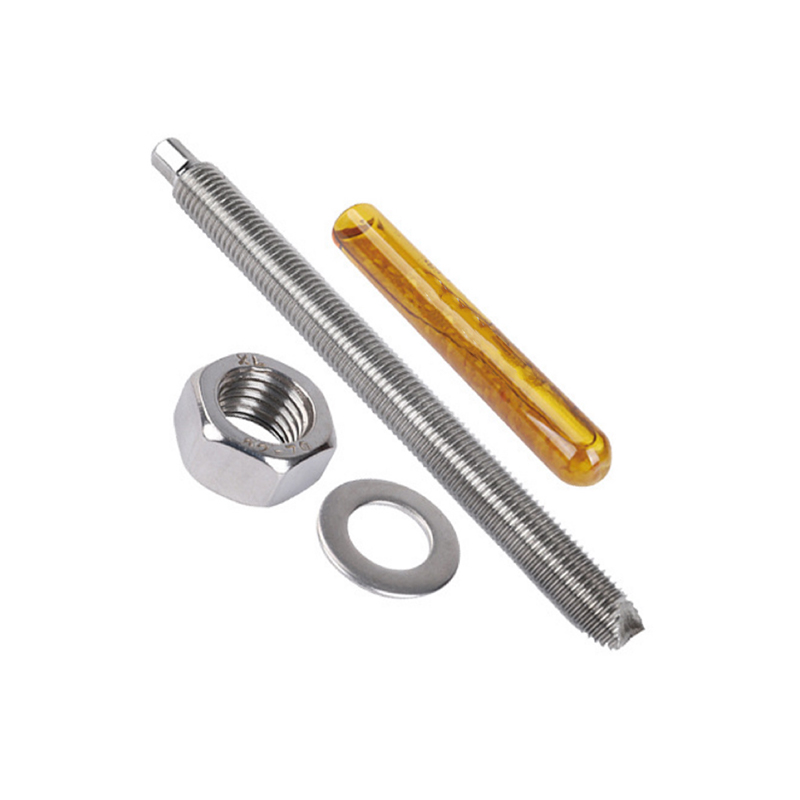

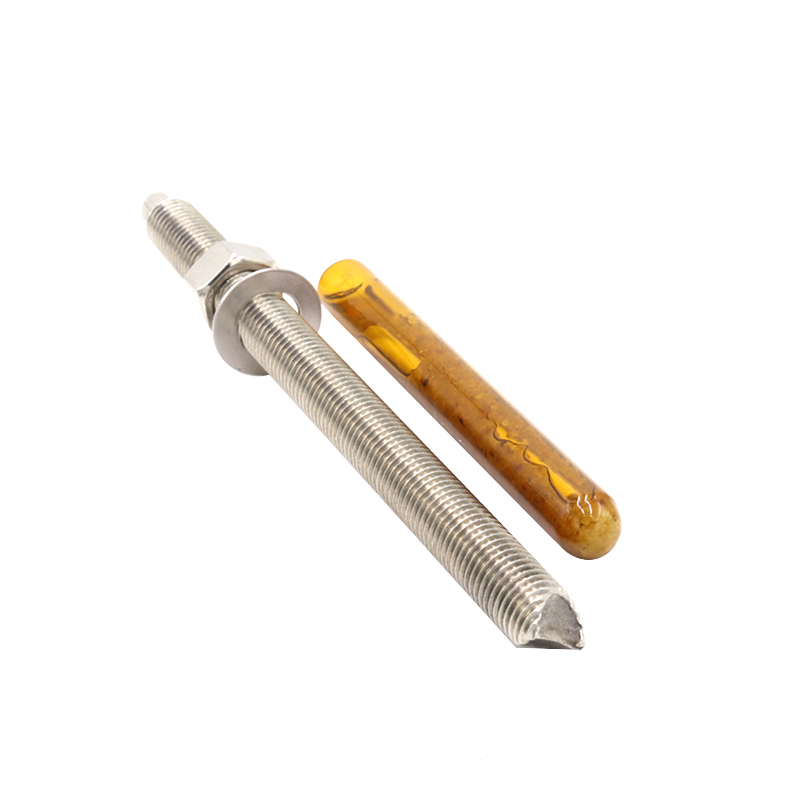

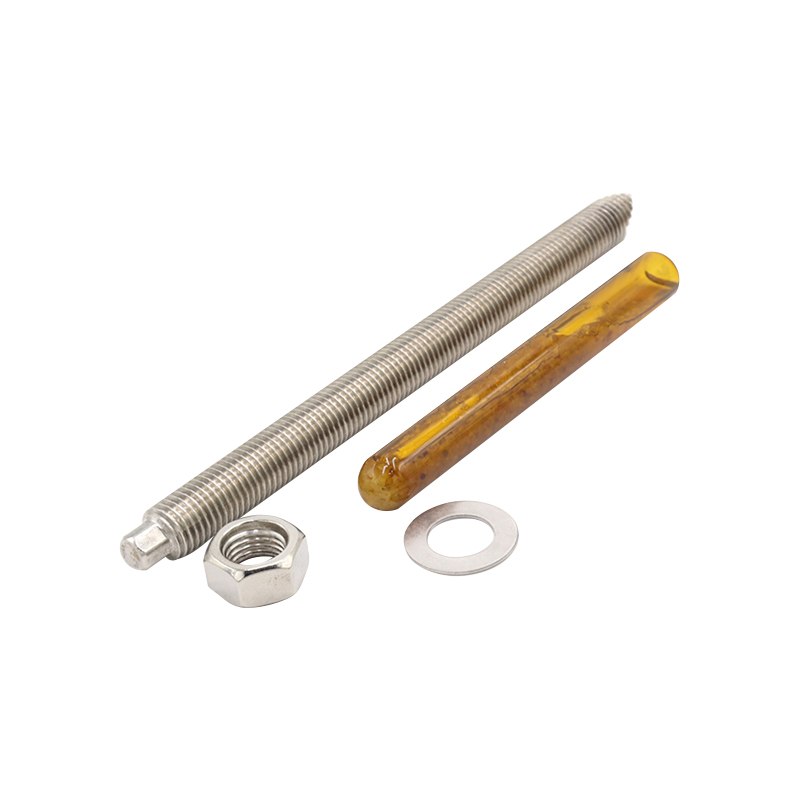

Stainless steel chemical anchor bolts are widely used in buildings, bridges, tunnels and other fields that require strong fixing. It is composed of stainless steel screws and special chemical injection materials, and forms a high-strength anchoring effect with the substrate through chemical adhesives (such as epoxy resin). Chemical anchor bolts inject chemical adhesives into the drilled holes and then insert anchor rods to form a strong mechanical connection and bonding force with the substrate. This product can be used in different substrates such as concrete, brick walls, rocks, etc.
Specific parameters and characteristics
1. Material
Stainless steel type:
304 (suitable for general corrosive environments)
316 (suitable for highly corrosive environments such as oceans or chemical plants)
Other high-performance stainless steels (such as 2205 duplex stainless steel)
2. Specifications
Diameter range:
Common ones are M6, M8, M10, M12, M16, M20, M24, and even larger.
Length:
Customized according to project requirements, the common range is 50mm - 1000mm.
Thread:
Full thread or partial thread design.
3. Bearing capacity
Pull-out strength:
Depending on the strength of the substrate and the specifications of the anchor bolt, it can withstand tens of kilonewtons of pull-out force.
Shear strength:
Suitable for applications with lateral forces, usually meeting international standards (such as ETA, ACI 318).
4. Environmental adaptability
Excellent corrosion resistance, suitable for:
Wet environment
High temperature area
Chemically corrosive environment
5. Chemical binder
Type: epoxy resin, polyester resin, vinyl ester resin
Curing time: fast curing or slow curing
Environmental performance: low volatile organic compounds (VOC)
Application scenarios and fields
1. Construction industry
Fix heavy steel beams, railings, curtain walls and brackets.
Seismic reinforcement of buildings in earthquake zones.
2. Bridges and tunnels
Fix bridge expansion joint devices.
Permanent anchoring of tunnel linings.
3. Industrial facilities
Installation of chemical plant and nuclear power plant equipment.
Pipeline support and fixation in highly corrosive environments.
4. Marine engineering
Structural fixation of docks and docks.
Foundation connection of offshore wind farms.
5. Special reinforcement projects
Repair and reinforcement of ancient buildings.
Anchoring of high-speed railway track slabs.
