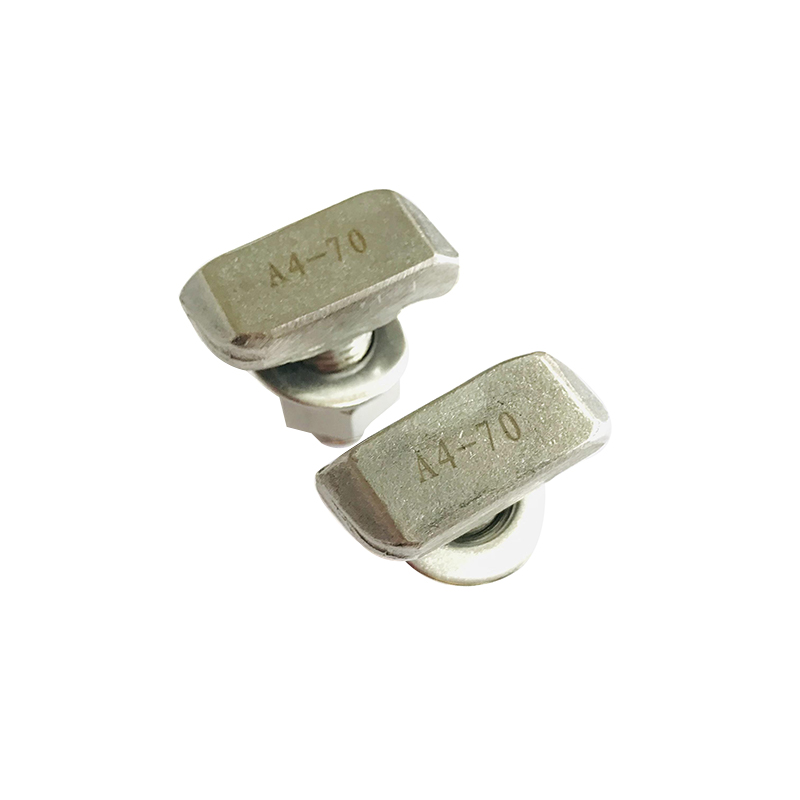

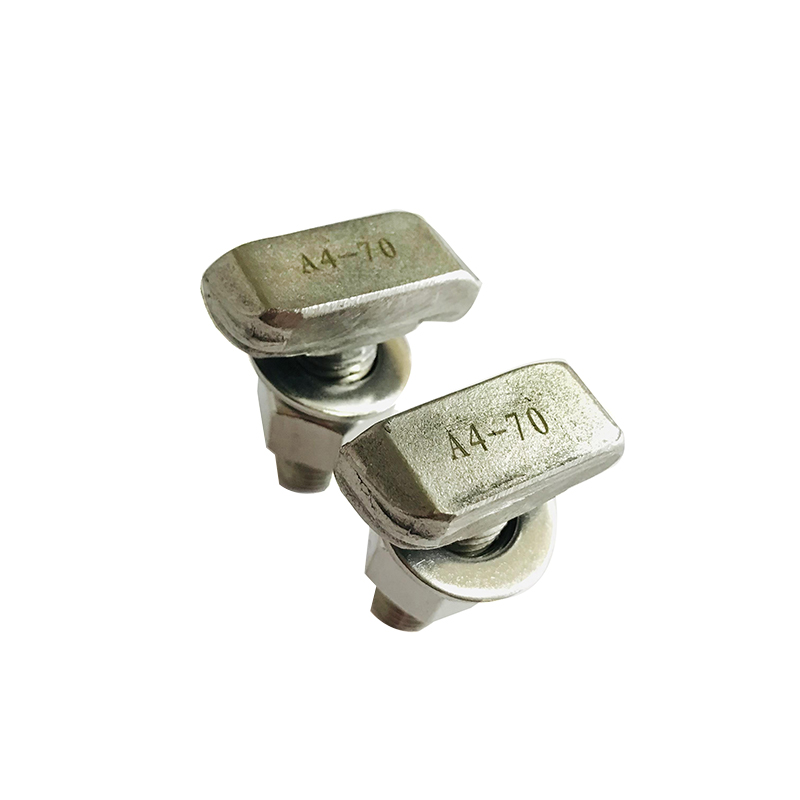

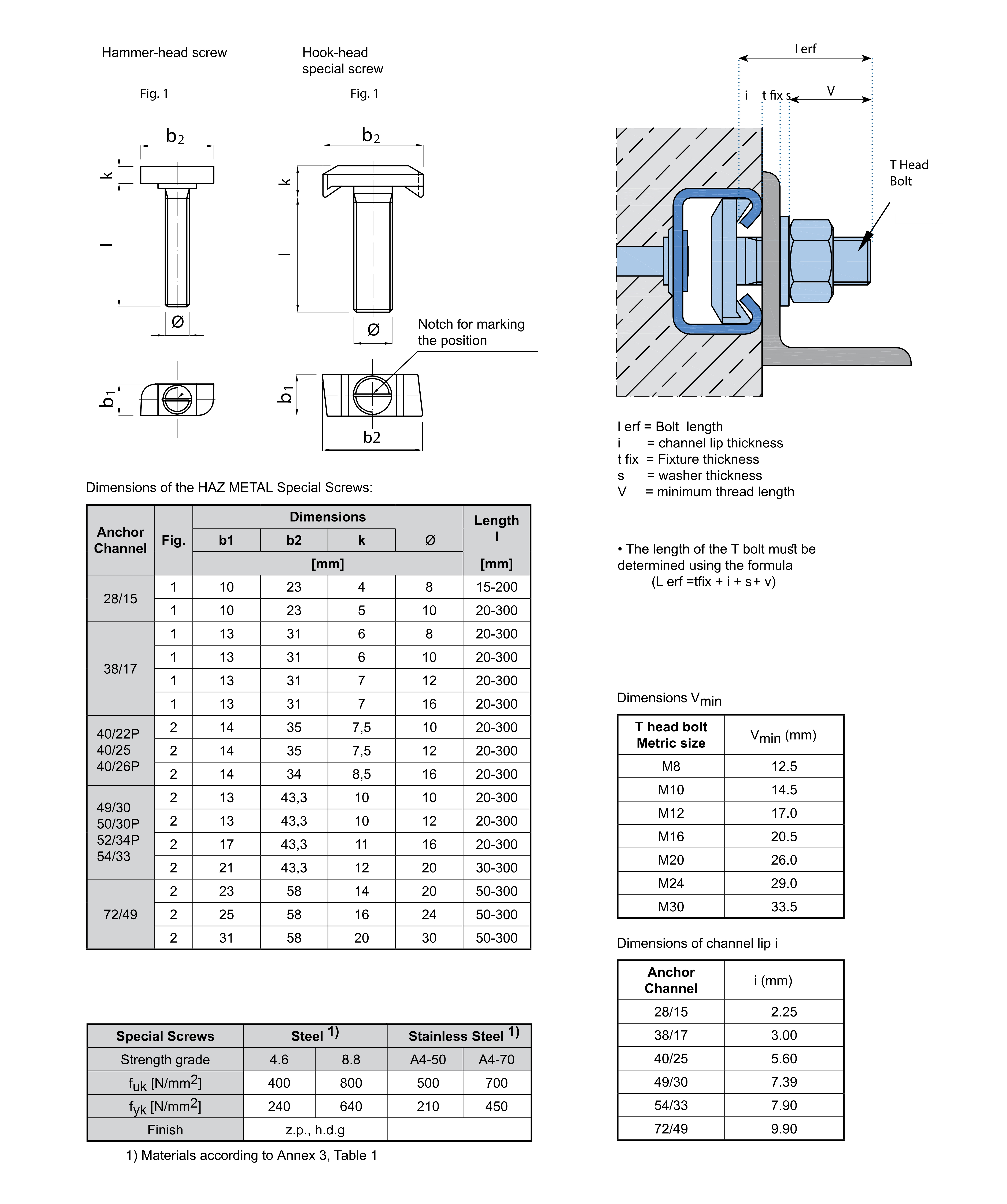

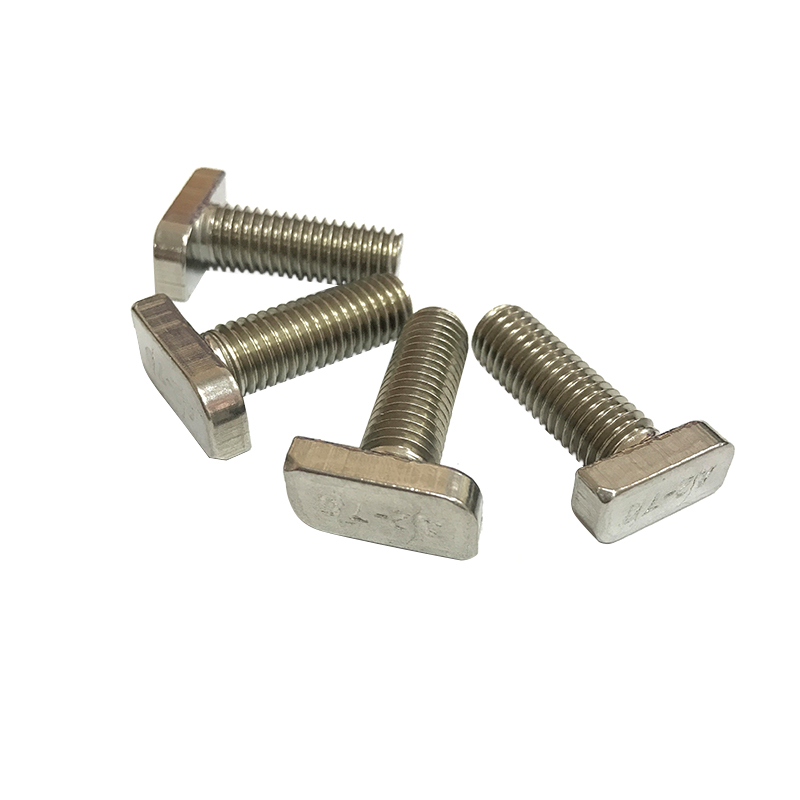

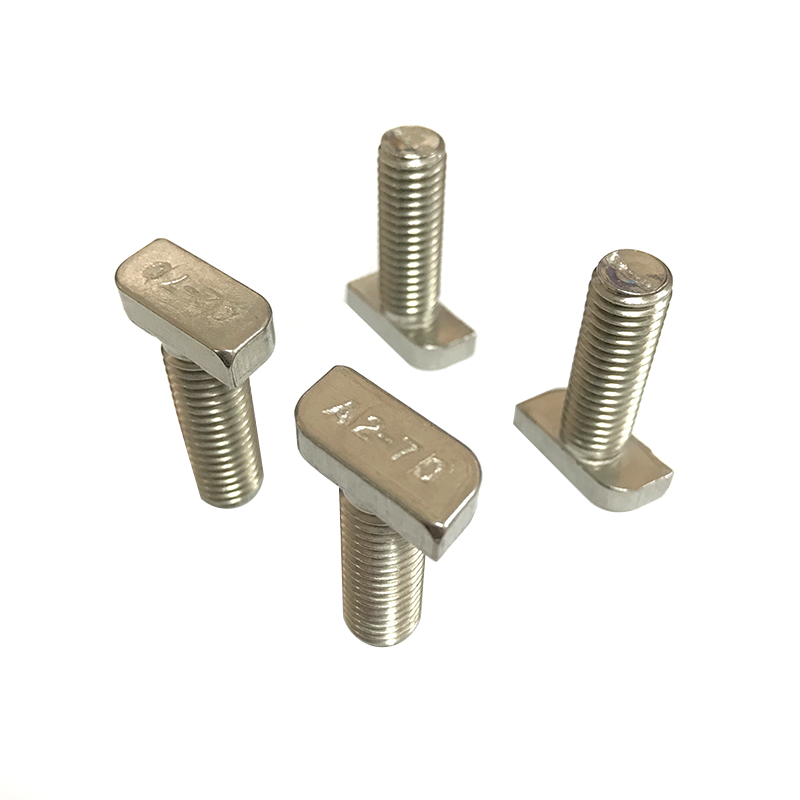

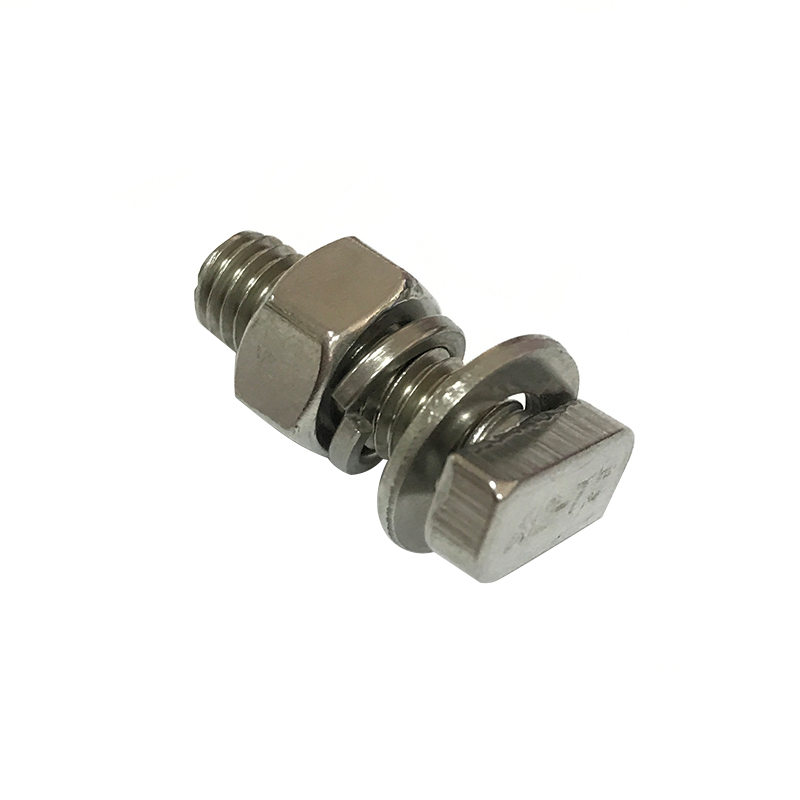

Dimensions of the HAZ METAL Special Screws:
Anchor Channel | Fig. | Dimensions | Length I [mm] |
|||
b1 | b2 | k | ф | |||
[mm] | ||||||
28/15 | 1 | 10 | 23 | 4 | 8 | 15-200 |
1 | 10 | 23 | 5 | 10 | 20-300 | |
38/17 | 1 | 13 | 31 | 6 | 8 | 20-300 |
1 | 13 | 31 | 6 | 10 | 20-300 | |
1 | 13 | 31 | 7 | 12 | 20-300 | |
1 | 13 | 31 | 7 | 16 | 20-300 | |
40/12P 40/25 40/26P |
2 | 14 | 35 | 7,5 | 10 | 20-300 |
2 | 14 | 35 | 7,5 | 12 | 20-300 | |
2 | 14 | 34 | 8,5 | 16 | 20-300 | |
49/30 50/30P 52/34P 54/33 |
2 | 13 | 43,3 | 10 | 10 | 20-300 |
2 | 13 | 43,3 | 10 | 12 | 20-300 | |
2 | 17 | 43,3 | 11 | 16 | 20-300 | |
2 | 21 | 43,3 | 12 | 20 | 30-300 | |
72/49 | 2 | 23 | 58 | 14 | 20 | 50-300 |
2 | 25 | 58 | 16 | 24 | 50-300 | |
2 | 31 | 58 | 20 | 30 | 50-300 |

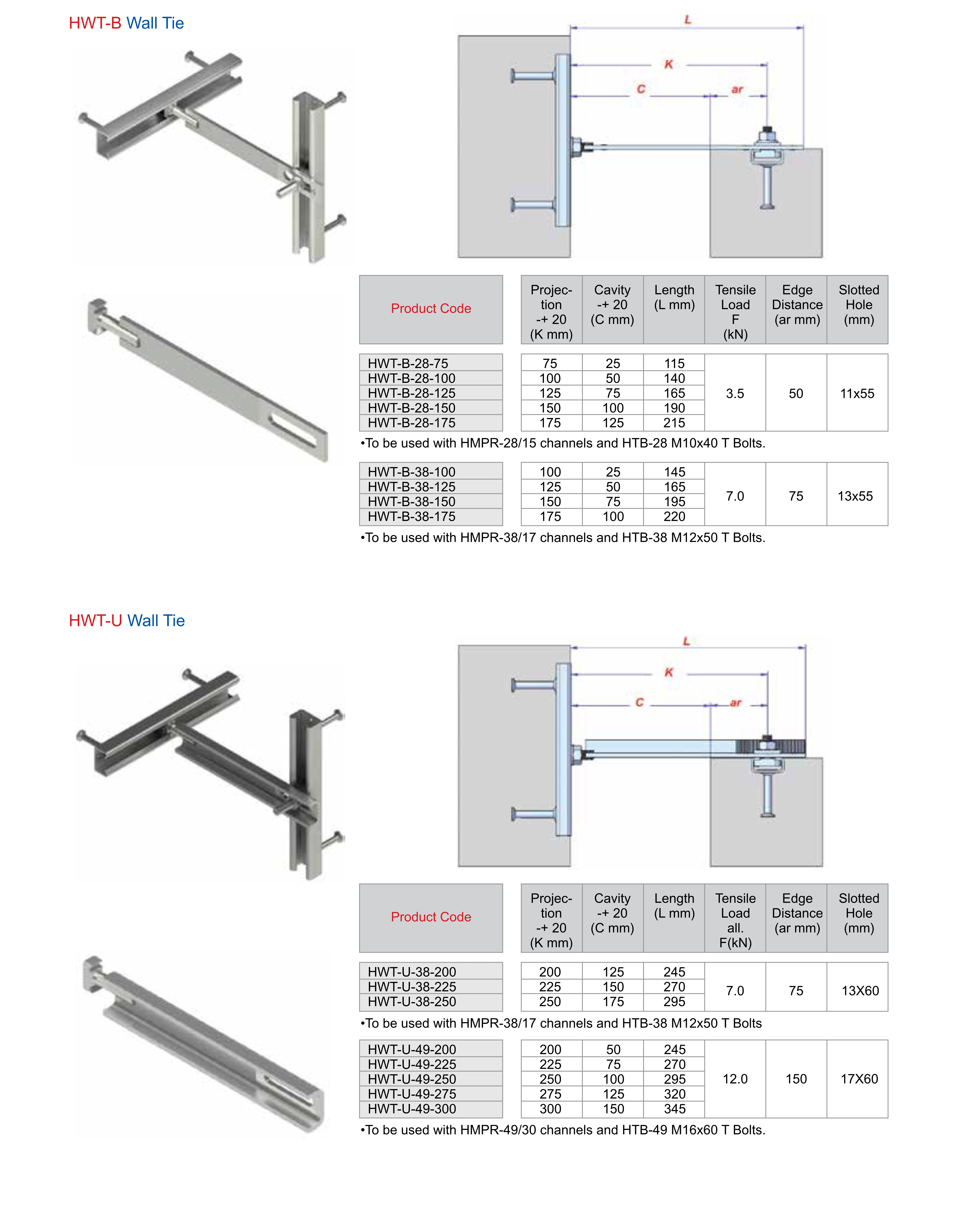

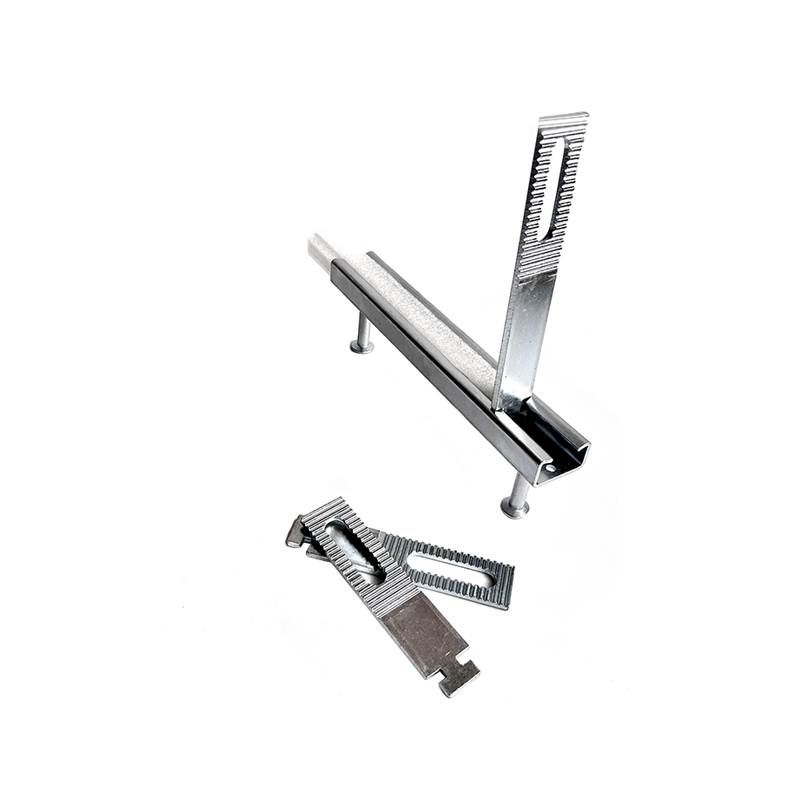

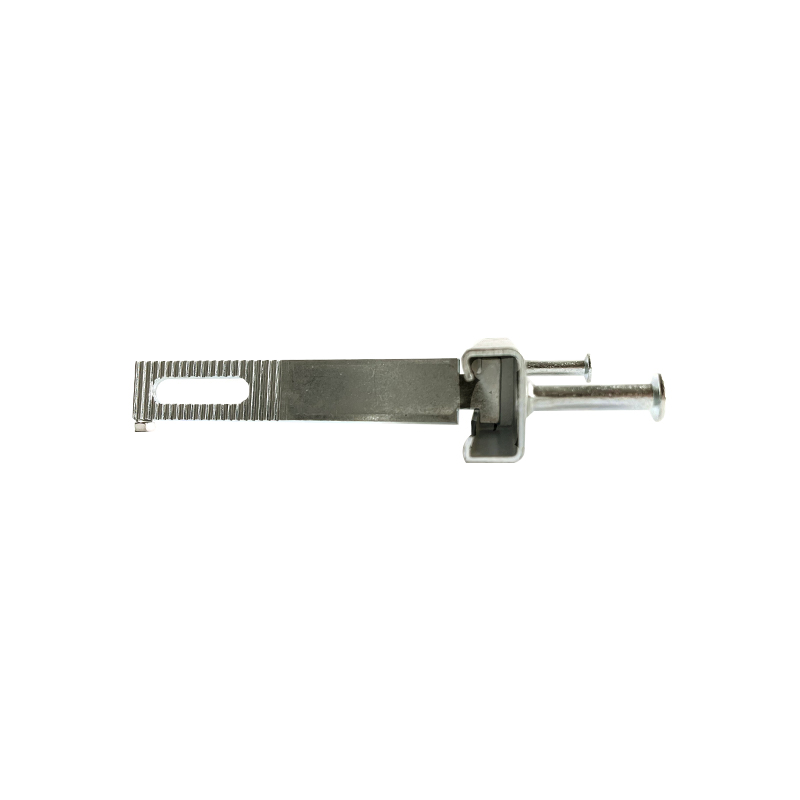

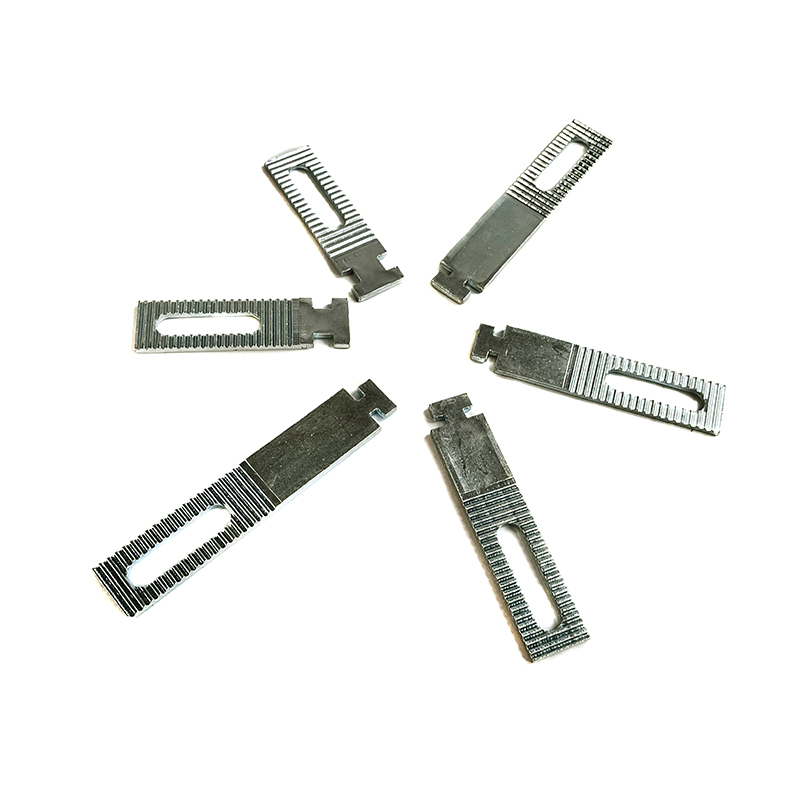

HWT-B Wall Tie:
Product Code | Projection-+20 (K mm) |
Cavity_+20 (C mm) |
Length (L mm) |
Tensile Load F (kN) |
Edge Distance (ar mm) |
Slotted Hole (mm) |
HWT-B-28-75 | 75 | 25 | 115 | 3.5 | 50 | 11x55 |
HWT-B-28-100 | 100 | 50 | 140 | |||
HWT-B-28-125 | 125 | 75 | 165 | |||
HWT-B-28-150 | 150 | 100 | 190 | |||
HWT-B-28-175 | 175 | 125 | 215 | |||
●To be used with HMPR-28/15 channels and HTB-28 M10x40 T Bolts. | ||||||
HWT-B-38-100 | 100 | 25 | 145 | 7.0 | 75 | 13x55 |
HWT-B-38-125 | 125 | 50 | 165 | |||
HWT-B-38-150 | 150 | 75 | 195 | |||
HWT-B-38-175 | 175 | 100 | 220 | |||
●To be used with HMPR-38/17 channels and HTB-38 M12x50 T Bolts. |

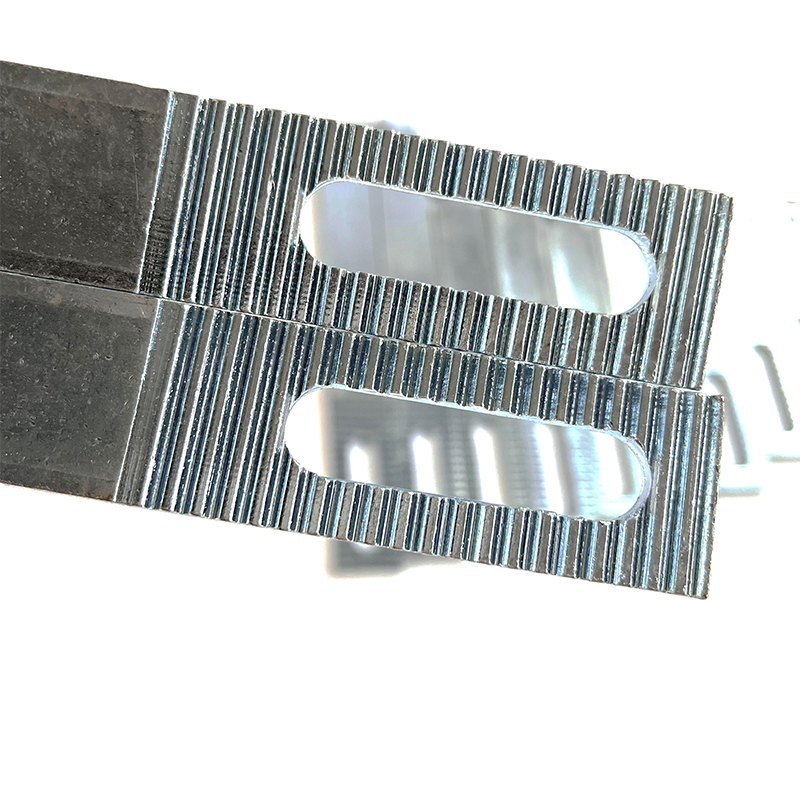

HWT-U Wall Tie:
Product Code | Projection-+20 (K mm) |
Cavity_+20 (C mm) |
Length (L mm) |
Tensile Load all.F (kN) |
Edge Distance (ar mm) |
Slotted Hole (mm) |
HWT-U-38-200 | 200 | 125 | 245 | 7.0 | 75 | 13x60 |
HWT-U-38-225 | 225 | 150 | 270 | |||
HWT-U-38-250 | 250 | 175 | 295 | |||
●To be used with HMPR-38/17 channels and HTB-38 M12x50 T Bolts. | ||||||
HWT-U-49-200 | 200 | 50 | 245 | 12.0 | 150 | 17x60 |
HWT-U-49-225 | 225 | 75 | 270 | |||
HWT-U-49-250 | 250 | 100 | 295 | |||
HWT-U-49-275 | 275 | 125 | 320 | |||
HWT-U-49-300 | 300 | 150 | 345 | |||
●To be used with HMPR-49/30 channels and HTB-49 M16x60 T Bolts. |

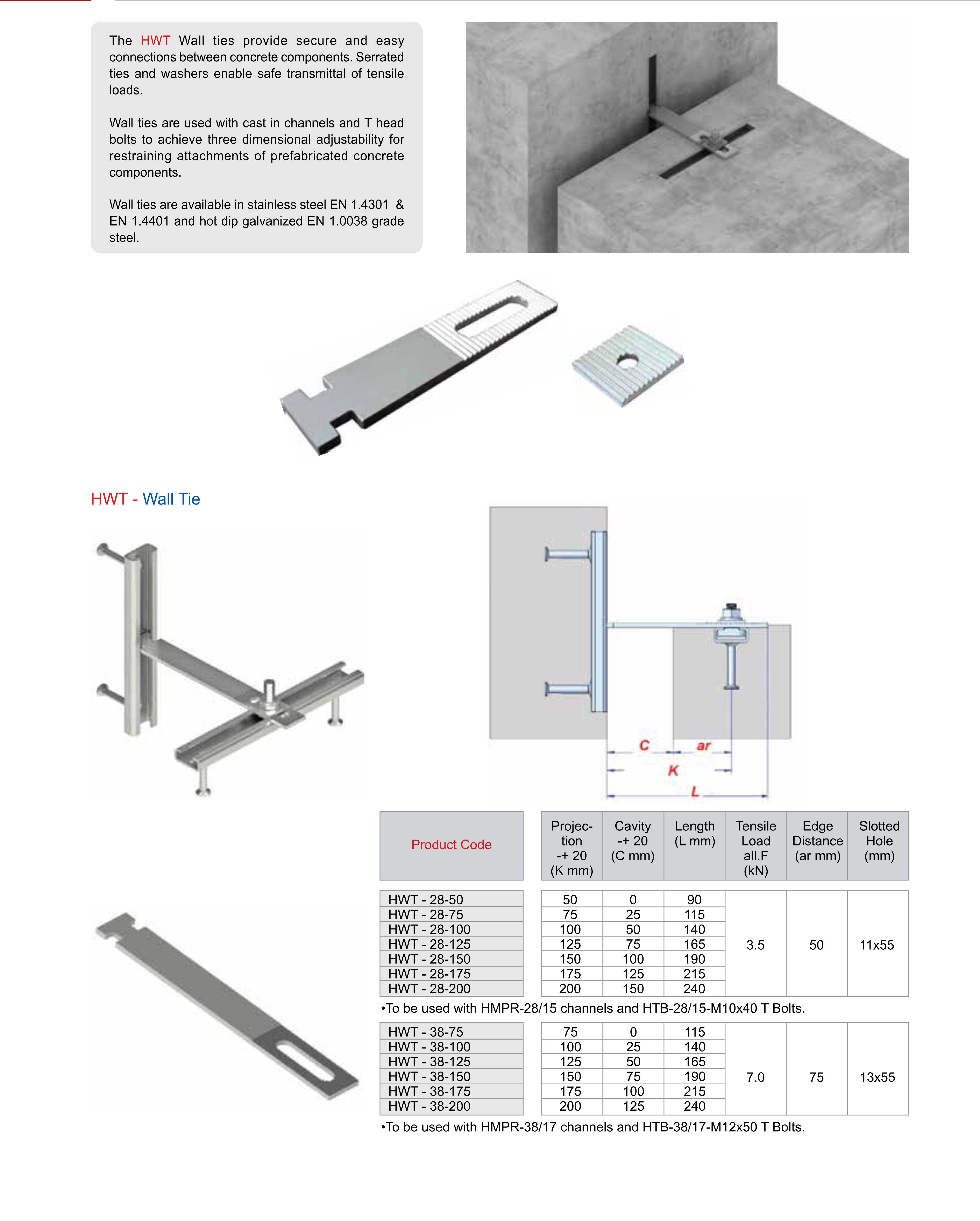

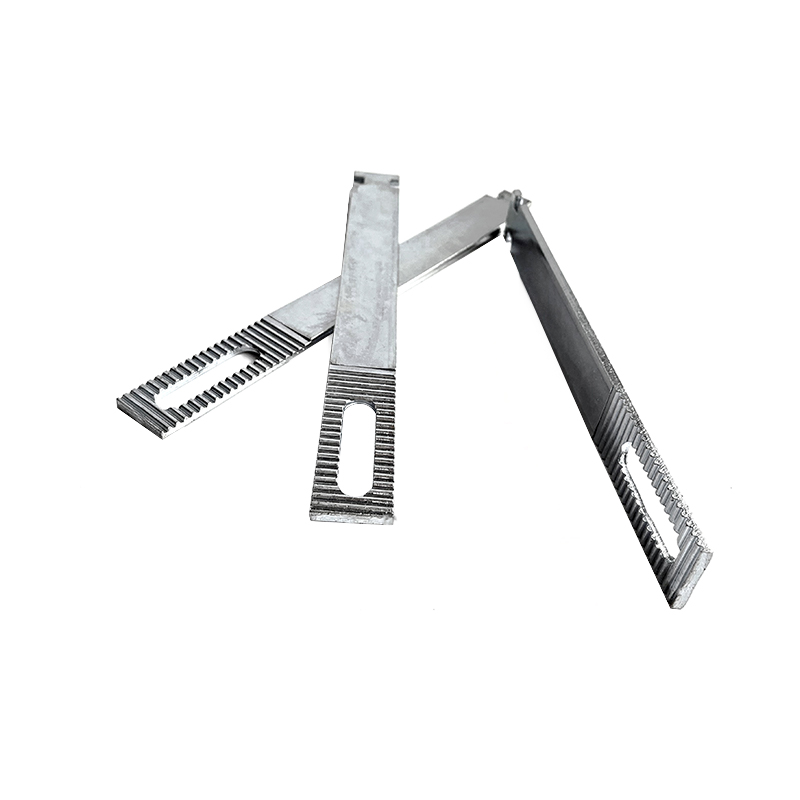

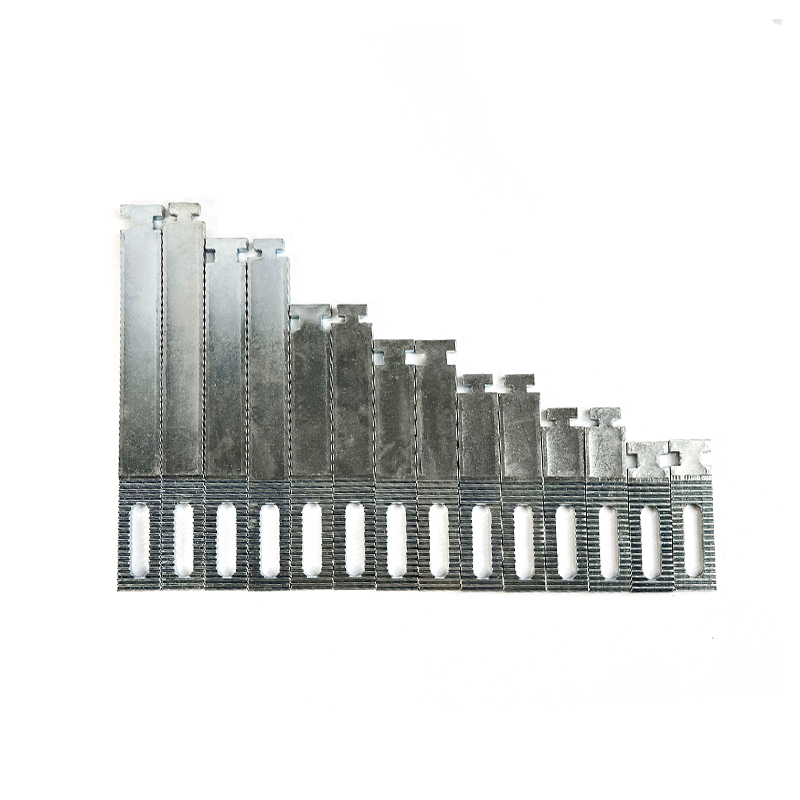

HWT-Wall Tie:
Product Code | Projection-+20 (K mm) |
Cavity_+20 (C mm) |
Length (L mm) |
Tensile Load all.F (kN) |
Edge Distance (ar mm) |
Slotted Hole (mm) |
HWT - 28-50 | 50 | 0 | 90 | 3.5 | 50 | 11x55 |
HWT - 28-75 | 75 | 25 | 115 | |||
HWT - 28-100 | 100 | 50 | 140 | |||
HWT - 28-125 | 125 | 75 | 165 | |||
HWT - 28-150 | 150 | 100 | 190 | |||
HWT - 28-175 | 175 | 125 | 215 | |||
HWT - 28-200 | 200 | 150 | 240 | |||
●To be used with HMPR -28/15 channels and HTB-28/15-M10x40 T Bolts. | ||||||
HWT - 38-75 | 75 | 0 | 115 | 7.0 | 75 | 13x55 |
HWT - 38-100 | 100 | 25 | 140 | |||
HWT - 38-125 | 125 | 50 | 165 | |||
HWT - 38-150 | 150 | 75 | 190 | |||
HWT - 38-175 | 175 | 100 | 215 | |||
HWT - 38-200 | 200 | 125 | 240 | |||
●To be used with HMPR-38/17 channels and HTB-38/17-M12x50 T Bolts. |
Jiangsu Aozheng Metal Products Co., Ltd. Is China Stainless Steel Hammer Screw T Bolt Suppliers and Wholesale Stainless Steel Hammer Screw T Bolt Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.
Jiangsu Aozheng Metal Products Co., Ltd. plays a significant role in the manufacturing of various materials, including stainless steel, aluminum alloys, carbon steel, and architectural hardware. Their...
READ MOREThe mounting brackets for solar panels are a very important part of the solar power generation system. They are mainly used to fix the solar panels and ensure that the panels can be stably installed o...
READ MOREIn the context of electrical or cable installation, a cast-in channel installation typically refers to a method of embedding metal channels (usually made of steel or aluminum) into concrete or masonry...
READ MOREIn the high-end construction market, Jiangsu Aozheng's T-bolts show many unique competitive advantages compared with similar products, which are mainly reflected in material quality, technological innovation, customized services, production strength and brand reputation.
1. Excellent material quality
Jiangsu Aozheng strictly controls the selection of materials for T-bolts, usually using high-strength, corrosion-resistant stainless steel materials, such as 304, 316 and other high-quality stainless steels, which have excellent corrosion resistance, oxidation resistance, high temperature resistance and low temperature resistance. These characteristics enable Jiangsu Aozheng's T-bolts to maintain stable performance for a long time in various harsh environments, and are particularly suitable for the high requirements for durability and safety in the field of high-end construction.
2. Leading in technological innovation
High-end technology research and development: Jiangsu Aozheng continues to invest in research and development resources to improve the technical content of T-bolts. The company uses advanced production processes and technologies, such as precision forging and heat treatment, to ensure that the mechanical and physical properties of the bolts reach the optimal level. This technological innovation enables Jiangsu Aozheng's T-bolts to perform well in terms of load-bearing capacity, tensile strength, fatigue life, etc.
Special design: In response to the special needs of the high-end construction market, Jiangsu Aozheng has designed a unique T-bolt structure, such as enhanced thread, optimized head design, etc., to better meet the connection needs under complex working conditions.
3. Perfect customized service
Jiangsu Aozheng provides a full range of customized services, and can provide tailor-made T-bolt solutions according to the specific needs and application scenarios of customers. This customized service not only includes basic parameters such as bolt size and material, but may also involve special performance requirements, surface treatment, etc. Through customized services, Jiangsu Aozheng can meet the high-end construction market's demand for personalization and differentiation, and improve the overall quality of the project.
4. Strong production strength
Advanced production equipment: Jiangsu Aozheng has advanced production equipment and technology, which can achieve high-precision and high-efficiency production of T-bolts. This production capacity ensures the quality of the product and the stability of the delivery period.
Perfect quality management system: The company has established a perfect quality management system, strictly controls all links such as raw material procurement, production process, and finished product inspection to ensure that the quality of each batch of products meets customer requirements.
5. Good brand reputation
Jiangsu Aozheng has a good brand reputation and reputation in the industry. As a company that has long focused on fastener production, the company is committed to providing customers with high-quality products and services. This accumulation of brand reputation has enabled the company to have a high degree of recognition and market share in the high-end construction market.
Jiangsu Aozheng's T-bolts show unique competitive advantages in the high-end construction market, such as excellent material quality, leading technological innovation, perfect customization services, strong production strength, and good brand reputation. These advantages make Jiangsu Aozheng's T-bolts an ideal choice for high-end construction projects.
