Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel
Galvanised U Channel

Galvanised U Channel

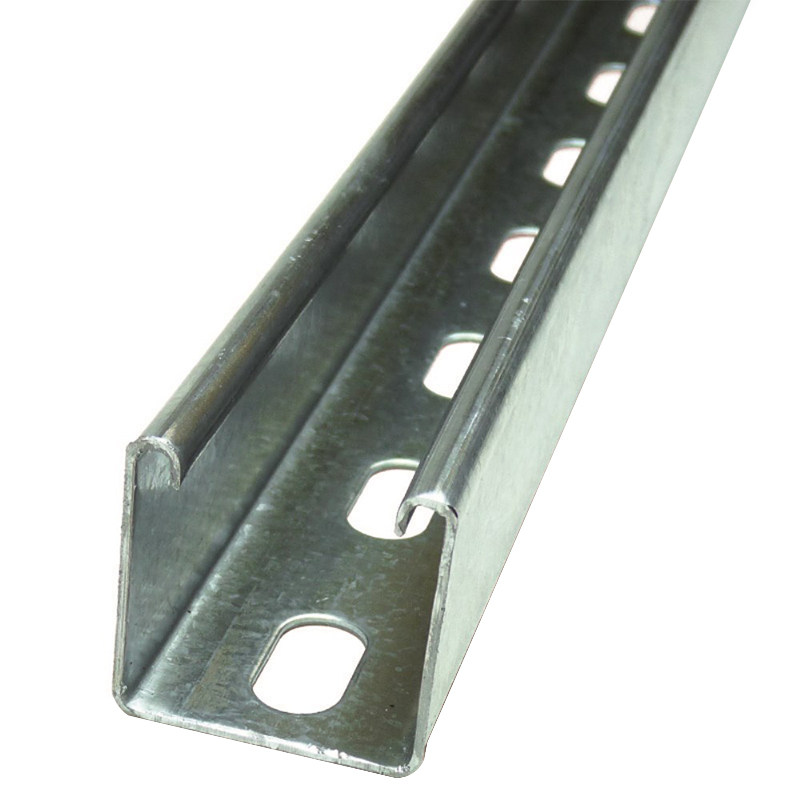

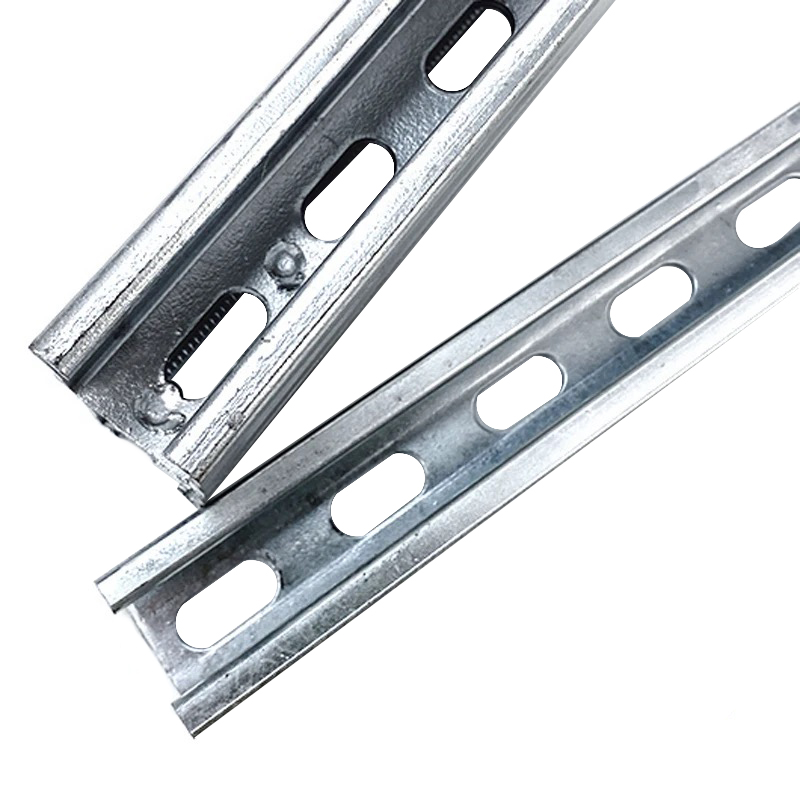

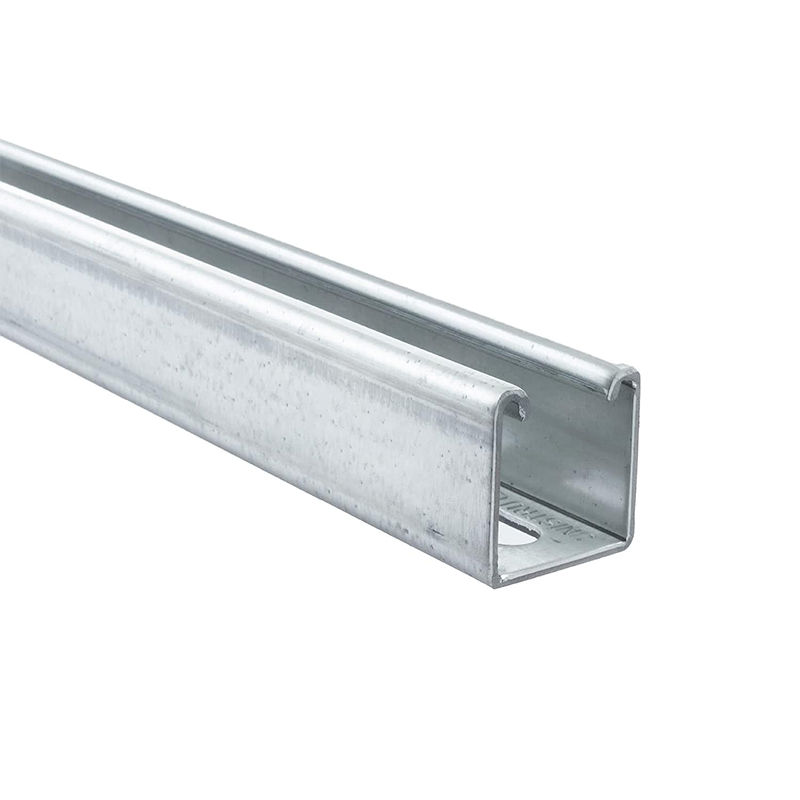

GI galvanized U channel, that is, galvanized U-shaped steel, is a steel product that has been hot-dip galvanized. It inherits the high strength and high stability characteristics of U-shaped steel, and at the same time has anti-corrosion properties given by the galvanized layer. This kind of steel has a "U"-shaped cross-section, has a compact structure and strong load-bearing capacity, and is suitable for a variety of construction and industrial applications. The galvanizing treatment makes GI galvanized U channel have corrosion resistance, maintaining its performance and appearance for a long time even in humid or corrosive environments. GI galvanized U channel is widely used in building frames, support structures, fences, and guardrails.
Get A Quote
PREV：Slotted U Channel SteelNEXT：Double Sided U Channel
  • Parameter
  • Contact Us

  • U Channel:

    Finish

    Hot dip galvanized

    Pre-galvanized

    Zinc plated/Electrical galvanized

    Stainless Steel 304

    Stainless Steel 316

    Power coating

    BUP1000

    Art No.

    Size

    Descr

    Thickness

    AG25

    41X41

    PLAIN

    2.50

    AG20

    41X41

    PLAIN

    2.00

    AG15

    41X41

    PLAIN

    1.50

    AB25

    41X41

    SLOTTED

    2.50

    AB20

    41X41

    SLOTTED

    2.00

    AB15

    41X41

    SLOTTED

    1.50

    DG25

    41X21

    PLAIN

    2.50

    DG20

    41X21

    PLAIN

    2.00

    DG15

    41X21

    PLAIN

    1.50

    DB25

    41X21

    SLOTTED

    2.50

    DB20

    41X21

    SLOTTED

    2.00

    DB15

    41X21

    SLOTTED

    1.50

    EG25

    62X41

    PLAIN

    2.50

    EB25

    62X41

    SLOTTED

    2.50

    FG25

    82X41

    BACK TO BACK

    2.50

    GG25

    41X41

    CONCRETE INSERT

    2.50




    Product Name

    Hot Dip Galvanized Steel Slotted Strut Channel ( C Channel, Unistrut, Uni Strut Channel)

    Material

    Q195/Q235/SS304/SS316/Aluminum

    Thickness

    1.5mm/1.9mm/2.0mm/2.5mm/2.7mm

    12GA/14GA/16GA/0.079''/0.098''

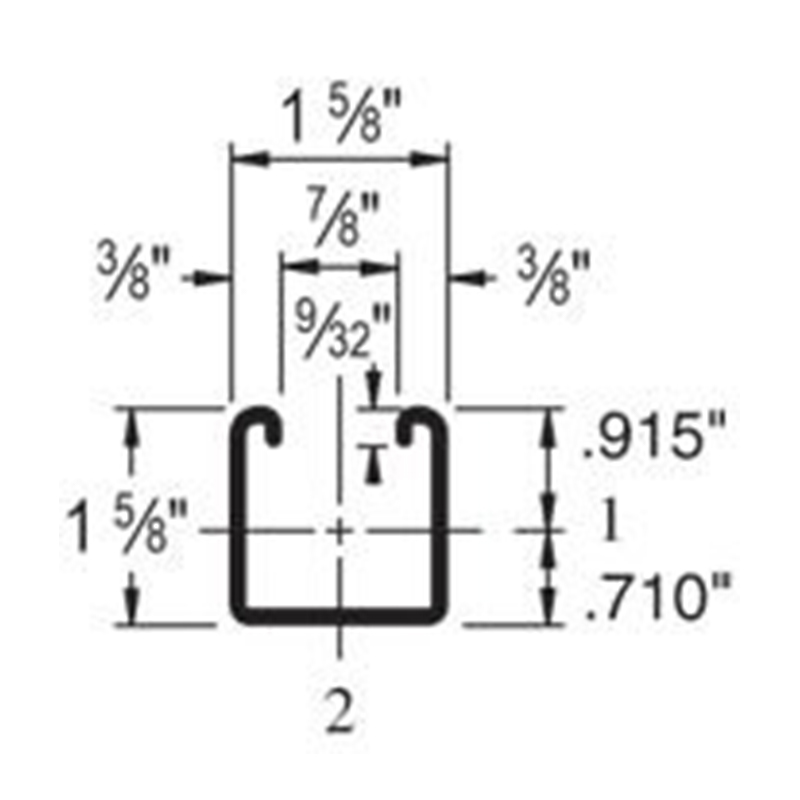

    Cross Section

    41*21,/41*41 /41*62/41*82mm with slotted or plain

    1-5/8'' x 1-5/8''     1-5/8'' x 13/16''

    Length

    3m/6m/customized

    10ft/19ft/customized

    Finished

    1. Pre-galvanized steel

    2. HDG(Hot dip galvanized)

    3. Stainless steel SS304

    4. Stainless steel SS316

    5. Aluminium

    6. Powder Coated


    Galvanized Channel

    The zinc coating on galvanized channels provides high-quality corrosion resistance. It acts as a protective barrier, preventing the underlying steel from coming into direct contact with moisture, oxygen, and other corrosive elements. This makes galvanized channels highly resistant to rust and extends their lifespan, especially in outdoor or high-humidity environments.

    Low Maintenance: Galvanized channels require minimal maintenance over their lifespan. The zinc coating provides a self-healing property, where if the coating is scratched or damaged, the surrounding zinc sacrificially protects the exposed steel, preventing corrosion. This reduces the need for frequent repairs or repainting, resulting in cost savings and convenience.

    Cost-Effectiveness: Galvanized channels offer cost advantages over alternative materials or coating methods. The initial investment in galvanized channels may be slightly higher compared to non-galvanized options, but their long lifespan and low maintenance requirements result in cost savings over time. Additionally, the protection provided by galvanization can help prevent costly repairs or replacements due to corrosion.

     U-channel is a type of metal extrusion that is shaped "U" in cross-section. It is commonly used in various applications: and industries, including construction, manufacturing, and fabrication.

    1. Uchannel some with two parallel flanges connected by a vertical web. The flanges are typically equal in length and perpendicular to the web. U-channels are often made from metals such as steel, aluminum, or stainless steel, which provide strength and durability.

    2. U-channels are frequently used as structural elements in building and construction projects. They can provide support, reinforcement, and stability to components or structures. U-channels are commonly used as beams, tracks, or framing members to support load-bearing applications.

    3. U-channels are utilized as mounting rails or tracks for attaching and securing components. They can serve as a base for mounting equipment, brackets, or other fixtures. U-channels offer versatility in mounting options, as they can be attached using screws, bolts, or welding.

    4. U-channels find extensive use in manufacturing processes, such as conveyor systems, material handling equipment, or machinery frames. They offer structural support, guidance, and stability to equipment and facilitate efficient production operations.

    5. U-channels are available in various sizes such as 41*41,41*21 and thickness from 1.5 to 3mm, dimensions, and materials to suit different application requirements. The specific choice of U-channel depends on load capacity, environmental conditions, and the intended use.

Related Products

About Us
Jiangsu Aozheng Metal Products Co., Ltd.

Jiangsu Aozheng Metal Products Co., Ltd. Is China Galvanised U Channel Suppliers and Wholesale Galvanised U Channel Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.

Certificate Of Honor
  • High-Tech Enterprises
  • Made in China Network Certification
  • Business License
  • Opening Permit
  • Jiangsu Private Science & Technology Enterprise
  • A heavy-duty combined stone pendant
  • An integrated stone back bolt
News
Message Feedback
U Strut Channel Industry knowledge

What are the standard sizes of U Strut Channel?

The standard sizes of U Strut Channel usually vary due to different manufacturers and regional standards, but the common sizes mainly involve its width, height and thickness. Here are some common standard sizes of U Strut Channel:

Common U Strut Channel Sizes
Width
41 mm (1-5/8 inches): This is one of the most common standard widths and is used in most applications.
21 mm (13/16 inches): Used for lighter support structures.
82 mm (3-1/4 inches): Used for heavier load support structures.

Height
21 mm (13/16 inches)
41 mm (1-5/8 inches)
62 mm (2-7/16 inches)
75 mm (3 inches)

Thickness
1.5 mm (0.059 inches)
2.0 mm (0.079 inches)
2.5 mm (0.098 inches)
3.0 mm (0.118 inches): Used for higher load requirements.

Other Parameters
Length: Standard lengths are usually 3 meters (about 10 feet) and 6 meters (about 20 feet), but they can also be customized according to specific needs.

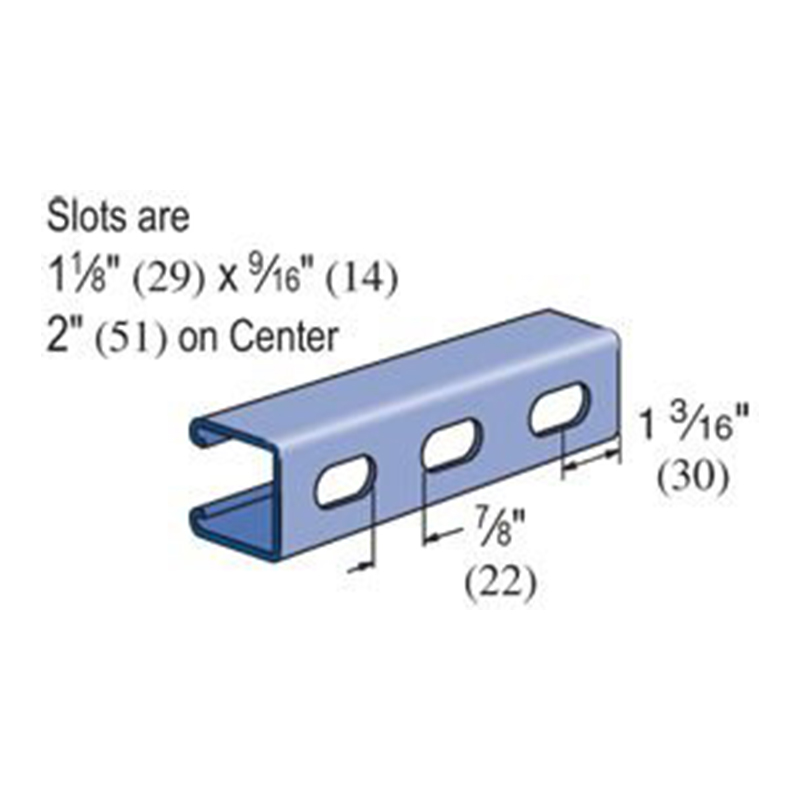

Hole Configuration: U Strut Channel usually has pre-drilled holes for quick installation and connection. Hole spacing and diameter may vary according to specific application needs.
Special Sizes and Customization
In addition to standard sizes, U Strut Channel can also be customized according to the needs of specific projects. This includes adjusting the length, hole spacing, special coatings, etc. to meet specific design and functional requirements.

Choosing the right size usually depends on the application scenario, load-bearing capacity, installation requirements, and environmental conditions. In engineering and construction projects, choosing the right U Strut Channel is an important factor in ensuring structural safety and effective support. If there are specific project requirements, it is recommended to communicate with the supplier to determine the most suitable product specifications.

Can U Strut Channel be customized?

U Strut Channel can be customized according to specific needs. This customization can be done in many aspects to ensure that it meets the requirements and application scenarios of specific projects. Here are some common customization options:

1. Length
Customized length: Although the standard length is usually 3 meters (about 10 feet) or 6 meters (about 20 feet), it can be custom cut according to the specific needs of the project to accommodate special installation requirements or space constraints.
2. Hole configuration
Hole spacing and size: The spacing, diameter and shape of the holes can be customized according to specific installation needs. This allows for more flexible installation and fixing of different types of equipment or components.
3. Material selection
Material types: In addition to standard hot-dip galvanized steel and stainless steel, special alloys or coating materials can be selected to improve corrosion resistance or meet specific strength requirements.
Coating and surface treatment: Different surface treatments can be selected, such as powder coating, electrogalvanizing, etc., to adapt to different environmental conditions (such as marine environments or chemical environments).
4. Shapes and Specifications
Special Shapes: In certain cases, U Strut Channel with special cross-sections can be designed to meet special load or installation requirements.
Reinforced Structures: For applications that require additional strength, thicker materials or additional reinforcement structures may be customized.
5. Accessories and Attachments
Customized Accessories: Special brackets, clamps and connectors can be designed and produced to ensure compatibility and integration with other systems and components.
6. Application Scenarios
Specific Industry Applications: Customized product solutions are provided according to the special requirements of different industries (such as power, communications, petrochemicals, etc.) to ensure product applicability and performance.
7. Color and Marking
Color and Marking: According to customer requirements, specific colors are painted or marked for easy identification and classification.
