3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt
3 PCS Shield Anchor Bolt

3 PCS Shield Anchor Bolt

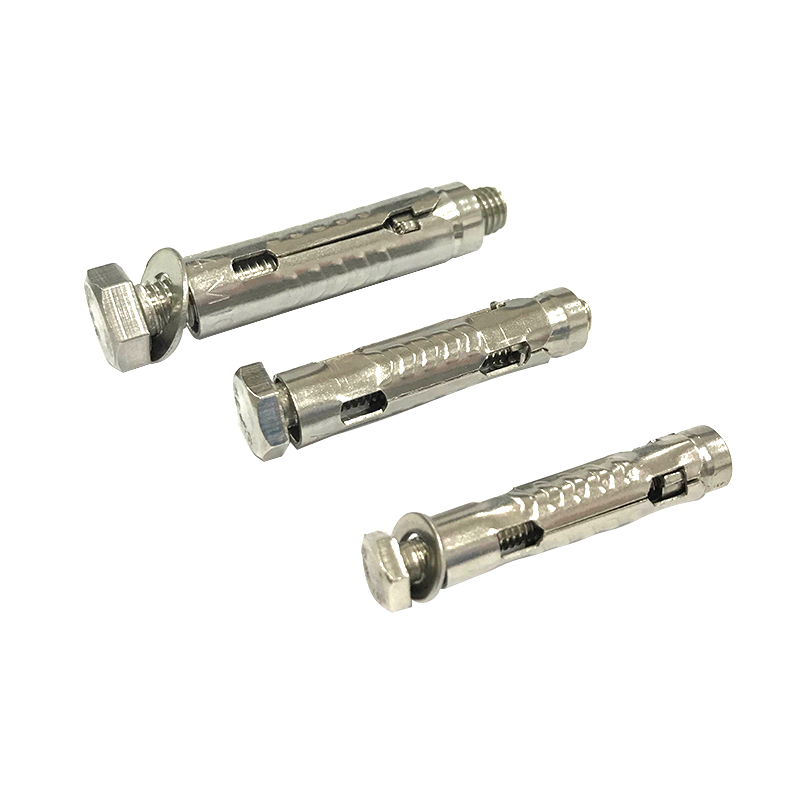

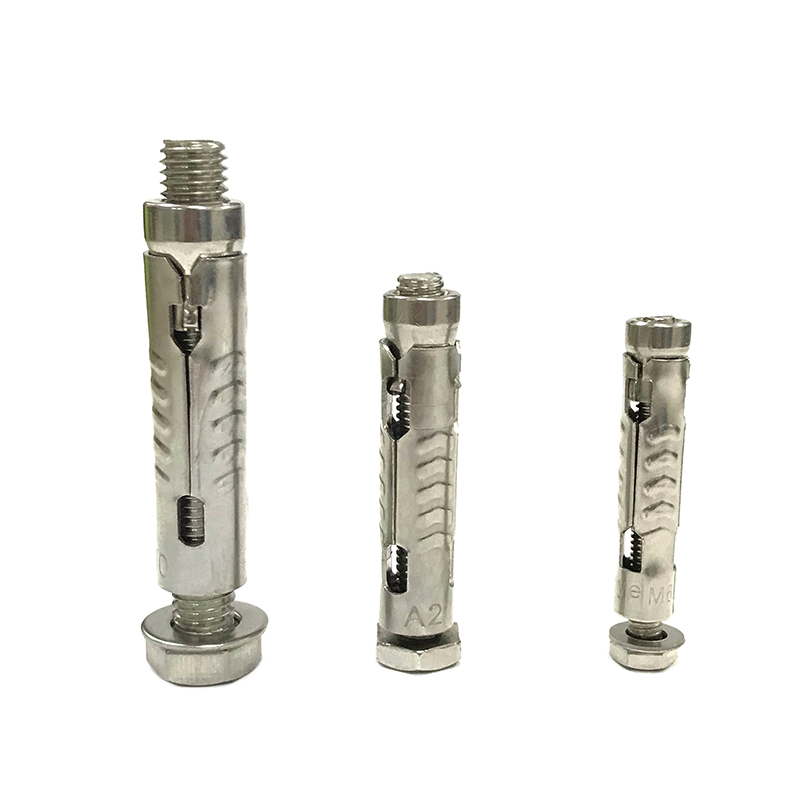

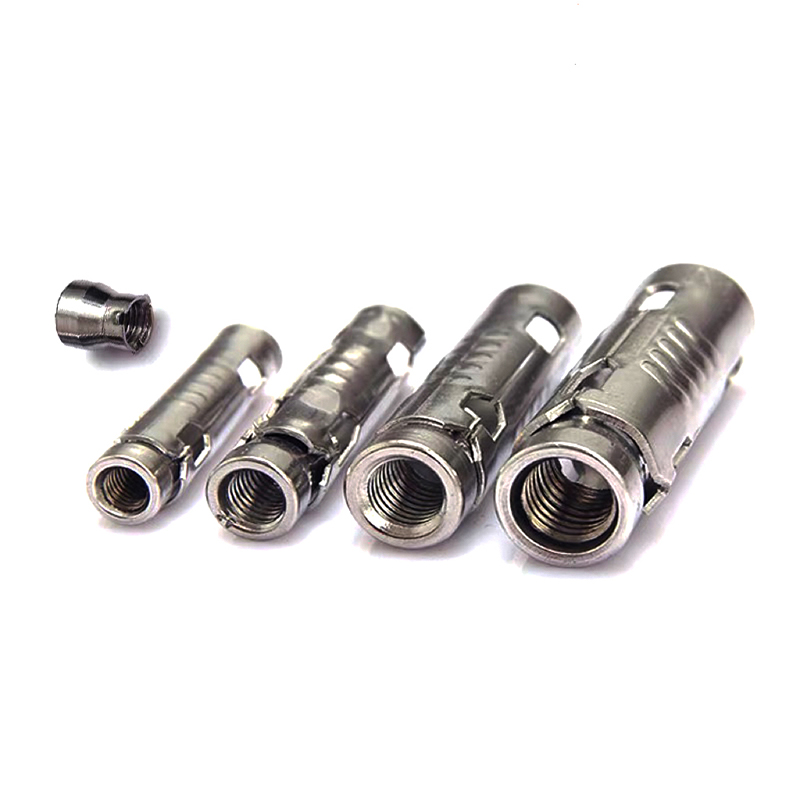

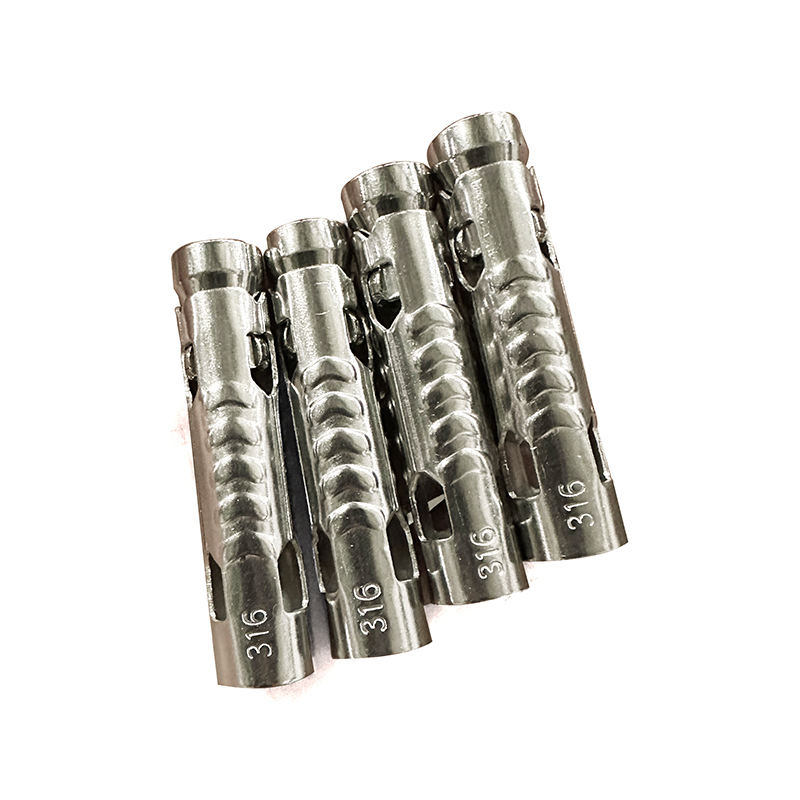

Shield anchor bolts consist of a threaded bolt, a metal sleeve (shield), and a cone-shaped expansion nut. The shield is typically made of steel and has grooves or ridges along its length. The expansion nut is placed over the threaded end of the bolt and is tapered to fit into the shield. Installation: To install a shield anchor bolt, a hole is drilled into the concrete or masonry using an appropriate-sized drill bit. The shield anchor is then inserted into the hole. When the expansion nut is tightened, it pulls the bolt upward, causing the shield to expand and grip the surrounding material, providing a secure hold. Load Capacity: Shield anchor bolts are capable of supporting significant loads, making them suitable for applications where strong and reliable connections are required. The load capacity depends on factors such as the size and type of anchor, the quality of the base material, and the proper installation technique. Versatility: Shield anchor bolts are commonly used in a wide range of applications, including construction, carpentry, metal fabrication, and more. They can be used to anchor structural elements, such as steel beams or columns, as well as fixtures like handrails, machinery, shelving, and signage. Materials: Shield anchor bolts are typically made of steel, which provides strength and durability. They are often zinc-plated or coated with other corrosion-resistant materials to enhance their longevity and protect against rust and corrosion. Sizes and Variations: Shield anchor bolts are available in various sizes and lengths to accommodate different applications and load requirements. They may also come in different designs, such as single-expansion or double-expansion anchors, to suit specific installation needs.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Parameter
  • Contact Us

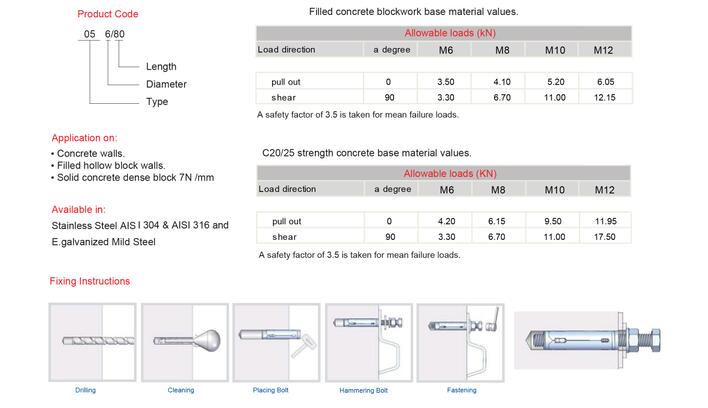

  • Product Code Technical Details

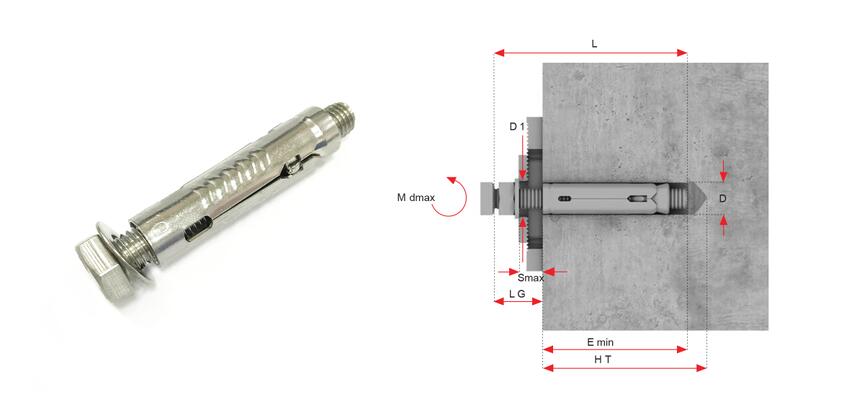

    Bolt Size Shell Size Drill Hole Diameter Drill Length Min.
    Embedment    		 Max. Fixture Thickness Fixture Hole Diameter Max.Torque Bolt Length
    (mm) (mm) D(mm) Ht (mm) E min (mm) S max (mm) D1(mm) Mdmax (Nm) (mm)
    05-6/60 M6x60 ф10x39 10 65 40 5 7 10 60
    05-6/80 M6x80 ф10x59 10 65 40 15 7 10 80
    05-8/80 M8x80 ф12x44 12 80 45 20 9 20 80
    05-8/100 M8x100 ф12x44 12 80 45 30 9 20 100
    05-10/100 M10x100 ф15x50 15 90 55 30 11 40 100
    05-12/120 M12x120 ф18x65 18 105 65 30 13 75 120

Related Products

About Us
Jiangsu Aozheng Metal Products Co., Ltd.

Jiangsu Aozheng Metal Products Co., Ltd. Is China 3 PCS Shield Anchor Bolt Suppliers and Wholesale 3 PCS Shield Anchor Bolt Factory, We are a combination of industry and trade enterprises, is committed to the production of stainless steel, aluminum alloy, carbon steel and low alloy steel materials, architectural hardware, the use of advanced automated cutting, stamping, welding process, is a diversified and large-scale professional production base, raw materials molding and machining plant in one, based on high quality and high-end market, the annual production of various types of building materials 2000 tons, mainly exported to the United States, Germany, Italy, Britain, South Korea, Australia, Canada, the Middle East and dozens of countries, with customers including large construction companies, including well-known construction team, has become their building materials in the Middle East. With an annual production of more than 2000 tons of various building materials, mainly exported to dozens of countries such as the United States, Germany, Italy, the United Kingdom, South Korea, Australia, Canada, the Middle East, etc., and cooperating with large-scale construction companies, including the world's high-quality architectural team, we have become an important supplier of their building materials in China.

Certificate Of Honor
  • High-Tech Enterprises
  • Made in China Network Certification
  • Business License
  • Opening Permit
  • Jiangsu Private Science & Technology Enterprise
  • A heavy-duty combined stone pendant
  • An integrated stone back bolt
News
Message Feedback
Others Anchor Bolt Industry knowledge

A variety of options for anchor bolts: shield-shaped, sleeve-shaped, plastic, which one is not a testimony to the progress of the industry?

In the ever-changing fields of construction, infrastructure and industry, anchor bolts, as the cornerstone of connection and fixation, are undergoing unprecedented changes. Among them, other anchor bolts such as shield anchor bolts, sleeve anchor bolts and plastic anchor bolts have become the shining stars in this change with their unique charm and wide application. Let us explore the mysteries of these anchor bolts and feel the new atmosphere they bring to the industry.

The name of the shield anchor bolt itself implies power and protection. Its design inspiration comes from the ultimate pursuit of structural stability. Through the unique shield structure, it achieves extensive contact and close connection with the substrate. This anchor bolt not only enhances the stability of the overall structure, but also maintains excellent adaptability in complex stress environments.

In terms of material selection, the shield anchor bolt also shows a high degree of flexibility. The application of a variety of materials such as stainless steel and carbon steel enables it to meet the requirements of corrosion resistance and bearing capacity of different projects. The simple and fast installation process further reduces construction costs and time and improves work efficiency.

In projects such as large bridges, high-rise buildings, and subway tunnels, shield anchor bolts are everywhere. They silently guard every structural element and ensure the stability and safety of the project. It can be said that shield anchors are indispensable and stable guardians in the fields of construction and infrastructure.

Unlike shield anchors, sleeve anchors have shown extraordinary strength in the fastening of lightweight materials with their unique expansion mechanism and wide applicability. The working principle of this anchor is simple and efficient: when the bolt is tightened, the sleeve will quickly expand into the inside of the substrate to form a tight connection point. This connection method is not only stable and reliable, but also does not cause damage to the surrounding materials.

Sleeve anchors have various specifications and can meet the fastening needs of different sizes and weights. At the same time, some high-end sleeve anchors are also made of environmentally friendly materials, which not only meets the needs of the project, but also conforms to the concept of sustainable development. In the fields of home decoration, interior decoration, commercial space layout, etc., sleeve anchors are increasingly widely used. They provide convenient and reliable solutions for scenes such as hanging murals, installing lamps, and fixing furniture.

As an environmentally friendly new star in the anchor industry, plastic anchors have won the favor of the market with their characteristics of light weight, high strength, corrosion resistance, and easy installation. This anchor is made of high-performance polymer materials, has excellent corrosion resistance and weather resistance, and can maintain stable performance in various harsh environments. At the same time, the material of the plastic anchor can be recycled and reused, which meets the requirements of green buildings and sustainable development.

In many fields, the application of plastic anchors is becoming more and more common. They are widely used to fix lightweight panels such as thermal insulation materials, sound insulation boards, decorative boards, etc., providing strong support for energy saving, environmental protection and beauty of buildings. The emergence of plastic anchors not only promotes the green transformation of the anchor industry, but also contributes to the sustainable development of the entire construction industry.

As the innovative force of the anchor industry, shield anchors, sleeve anchors and plastic anchors are leading the entire industry to develop in a more efficient, safe and environmentally friendly direction. They have won market recognition and praise with their unique advantages and a wide range of application scenarios. With the continuous advancement of technology and the increasing maturity of the market, these new anchors will play a more important role in the future and inject new vitality into the development of construction, infrastructure and industry.
